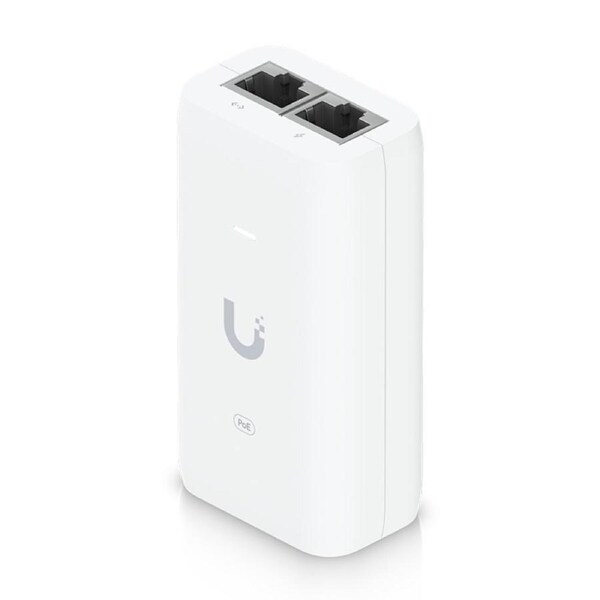

Ubiquiti 15W PoE 802.11AF Adapter (U-POE)
SPECIFICATIONS:
Dimensions | 86 x 46 x 33 mm (3.4 x 1.8 x 1.3") |
Weight | 100 g (3.5 oz) |
Output voltage | 48V DC @ 0.32A |
LAN activity indicator | No |
Gigabit LAN port | Yes |
Remote reset capability | No |
Reset button | No |
Rated voltage | 100-240V AC @ 50/60Hz |
Input current | 500mA max. |
Inrush current | <100A peak at 25C |
Efficiency | 84.25+% |
Output ripple | 200mV p-p |
Switching frequency | 65 kHz |
Line regulation | 3% |
Load regulation | 5% |
2-pair powering | Pins 4, 5 (+) and 7, 8 (-) |
4-pair powering | No |
AC connector | IEC-320 C6 |
Data In / PoE | RJ45 shielded socket |
Surge protection | Difference and common mode |
Clamping protection | 11V data, 60V power |
Max. surge discharge | 1500A (8/20 μs) power |
Peak pulse current | 36A (10/1000 μs) data |
Shunt capacitance | <5 pF data |
Response time | <1 ns |
Ambient operating temperature | 0 to 40 C (32 to 104 F) |
Storage temperature | -30 to 70C (-22 to 158 F) |
Ambient operating humidity | 10 to 95% noncondensing |
Certifications | CE, FCC, IC, UL |
