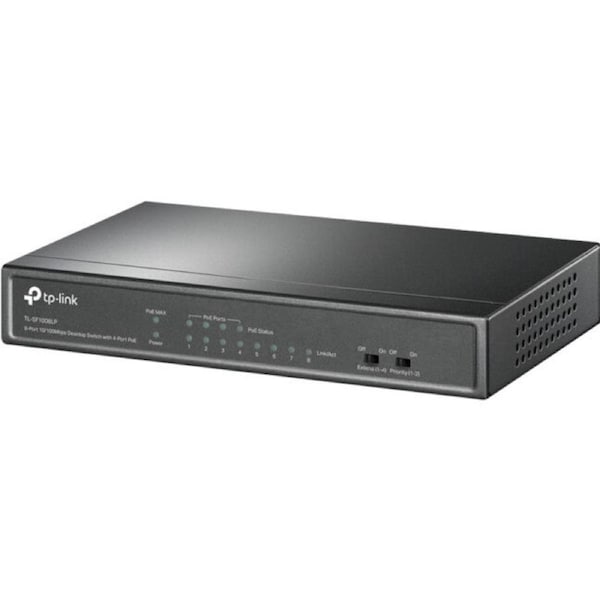

8 PORT 10/100 SWITCH 4 X POE PORT 41W
- 8× 10/100 Mbps RJ45 ports
- 4× PoEports transfer data and power on individual cables
- Works with IEEE 802.3afcompliant PDs
- Up to 250m data and power transmitting range under Extend Mode**
- Priority Mode ensures high priority of ports 1-2to guarantee the quality of sensitive application
- Supports PoE Power up to 41 W for all PoE ports*
- Plug and play with no configuration required
| HARDWARE FEATURES | |
|---|---|
| Interface | • 8× 10/100 Mbps RJ45 Ports (Ports 1-4 support 802.3af PoE) • AUTO Negotiation • AUTO MDI/MDIX |
| Network Media | • 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) • 100BASE-TX: UTP category 5, 5e cable (maximum 100m) • EIA/TIA-568 100Ω STP (maximum 100m) |
| Fan Quantity | Fanless |
| Physical Security Lock | Yes |
| External Power Supply | External Power Adapter (Output: 53.5 V DC / 0.81 A) |
| Packet Forwarding Rate | 1.1904 Mpps |
| PoE Ports (RJ45) | • Standard: 802.3 af compliant • PoE Ports: Ports 1-4 • Power Supply: 41 W |
| Mac Address Table | 2K |
| Jumbo Frame | 2 KB |
| Switching Capacity | 1.6 Gbps |
| Dimensions ( W x D x H ) | 6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm) |
| Max Power Consumption | • 2.2 W (220 V/ 50 Hz. no PD connected) • 47.1 W (220 V/ 50 Hz. with 41 W PD connected) |
| Max Heat Dissipation | • 7.5 BTU/h(no PD connected) • 160.61 BTU/h(with 41 W PD connected) |
| SOFTWARE FEATURES | |
|---|---|
| Transmission Method | Store-And-Forward |
| Advanced Functions | • Compatible With IEEE 802.3af Compliant PDs • Extend Mode Button (Ports 1-4) • Priority Mode Button (Ports 1-2) • Mac Address Auto-Learning and Auto-Aging • IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode |
| OTHERS | |
|---|---|
| Certification | FCC, CE, RoHS |
| Package Contents | • TL-SF1008LP • Power Adapter • Installation Guide |
| Environment | • Operating Temperature: 0-40 °C (32-104 °F) • Storage Temperature: -40-70 °C (-40-158 °F) • Operating Humidity: 10-90% RH non-condensing • Storage Humidity: 5-90% RH non-condensing |
