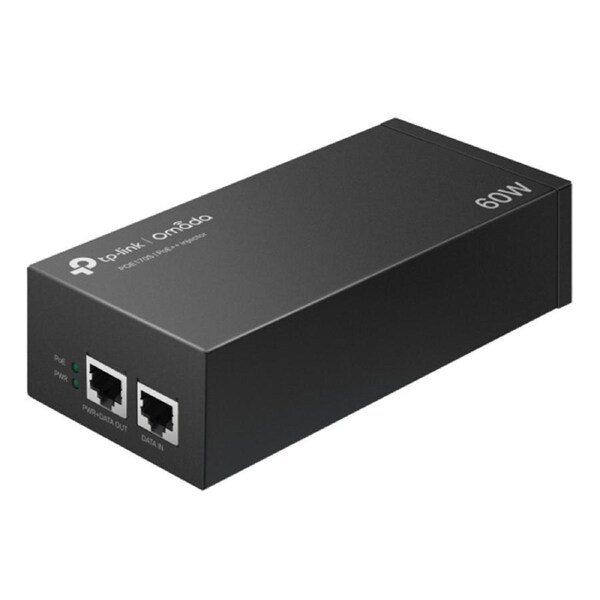

TP-Link Omada PoE++ Injector (POE170S)
NOTE: *POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt.
TP-Link Omada PoE++ Injector
The Omada PoE++ Injector POE170S fully complies with IEEE 802.3af/at/bt (type 3) standards with up to 60 W power supply.* It can easily expand your network to where there are no power lines or outlets, ideal for connecting PTZ IP Cameras, access points, and LEDs.
SPECIFICATIONS:
HARDWARE FEATURES | |
Standards and Protocols | IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*
* POE170S is incompatible with Passive PoE and other non-standard PoE devices. The standards refer to IEEE 802.3af/at/bt. |
Interface | • 1 10/100/1000Mbps RJ45 data-in port • 1 10/100/1000Mbps RJ45 power+data-out port (Max. 60 W) • 1 AC socket |
Network Media | • 10BASE-T: UTP category 3, 4, 5 cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 100BASE-TX: UTP category 5, 5e cables (maximum 100 m) • EIA/TIA-568 100Ω STP (maximum 100 m) • 1000BASE-T: UTP category 5, 5e, 6 cables (maximum 100 m) |
Max. Power Consumption | • Input: 100-240 V, 50/60 Hz, 1.6A • Output: Auto-determine the necessary power requirements (max. 60 W) |
Basic Function | • Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD • Auto-determine the necessary power requirements • Wall-mounting and desktop installation supported • Plug-and-Play |
LED | • Power • PoE |
Dimensions ( W x D x H ) | 6.12.81.7 in (1557042 mm) |
GENERAL | |
Material | Metal Casing |
OTHERS | |
Certification | FCC, CE, RoHS |
Package Content | • Omada PoE++ Injector POE170S • Installation Guide • Power Cord • RJ45 Cable |
Environment | • Operating Temperature: 0C to 45C (32F to 113F) • Storage Temperature: -40C to 70C (-40F to 158F) • Operating Humidity: 10% to 90%RH non-condensing • Storage Humidity: 5% to 90%RH non-condensing |
