Features:

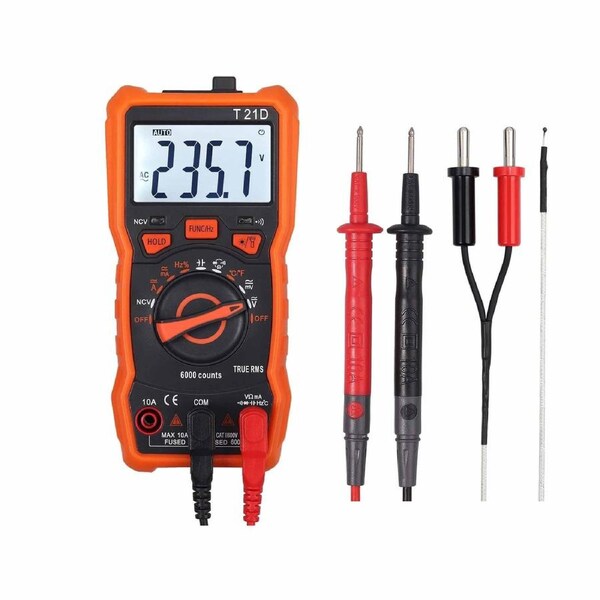

-This digital multifunctional multimeter with precision and performance can measure AC / DC voltage, current, resistance, capacitance, frequency, duty ratio, temperature. It also can test NCV or non contact voltage, diode, transistor and continuity. With a bracket on the back, convenient to place it on the table and read the values. Banana Plug to Alligator Clip Test Lead cables are frequently used in electrical or laboratory to quickly and cheaply assemble circuits. They are useful for connecting components to wires.
-With Auto/Manual Range.
-With True RMS.
-With NCV.
-With Data hold.
-With Back light.
-With Light.
-With Diode test.
-With Triode test.
-With Continuity.
-With Over load protection.
-With Low Battery Indication.
-With Auto Power Off.
-With Short circuit protection.
Specifications:
-DC Voltage Range and Accuracy: 600mV / 6V / 60V / 600V Deviation 0.5 Percent Plus 4
-AC Voltage Range and Accuracy: 600mV / 6V / 60V / 600V / 600V Deviation 0.8 Percent Plus 6
-DC Current Range and Accuracy: 600uA / 6000uA / 60mA / 600mA / 6A / 10A Deviation 1. Percent Plus 5
-AC Current Range and Accuracy: 600uA / 6000uA / 60mA / 600mA / 6A / 10A Deviation 1.5 Percent Plus 5
-Resistance Range and Accuracy: 600 Ohm /6k Ohm / 60k Ohm /600k Ohm / 6M Ohm / 60M Ohm Deviation 0.8 Percent Plus 1
-Capacitance Range and Accuracy: 60nF/ 600nF / 6uF/ 60uF / 600uF / 6mF / 60 Deviation 3.5 Percent Plus 8
-Frequency Range and Accuracy: 10Hz / 100Hz / 1kHz / 10kHz / 100kHz / 1MHz / 10MHz Deviation 0.5 Percent Plus 4
-Temperature Range and Accuracy: Negative 40Degrees Celsius to 1000 Degrees Celsius Deviation / 1.0 Percent Deviation 5 / 0 Degrees Fahrenheit to 1832 Degrees Fahrenheit Deviation 1.0Percent Plus 5
-Duty cycle: 1 Percent to 99 Percent
-Display: 6000 Counts
-General Specifications:
-Power Supply: 3 x AAA Included
-Net weight: 195g
-Dimensions: 144 × 72 × 45mm
-Safety Rating: EN61010-1-2-030 CAT III 1000V CAT IV 600V EN61010-2-033, CE ROHS
-Alligator Clip Cable Specifications:
-Wire Dia: 3.5mm / 0.14inch
-Male Banana Plug Pin Dia: 4mm / 0.16inch
-Alligator Clip Open Width Maximum: 9mm / 0.75inch -Banana Outer Size: 5.1 x 1cm / 2 x 0.4inch L x D
-Alligator Clip Size: 5.1 x 2 x 0.8cm / 2 x 0.8 x 0.31inch L x W x T
-Total Length: 80cm / 2.62ft
-Rated current: 15A
-Max Voltage: 1000V
-Colour: Red, Black
-Material: Metal, Plastic
-Total Weight: 75g
Package Inclusions:
-1 x Digital Multimeter
-1 x Test Leads Banana Plug to Alligator Clip
-1 x Users Manual
-1 x K-Type Temperature Probe
-2 x 1.5V AAA, Battery Included
