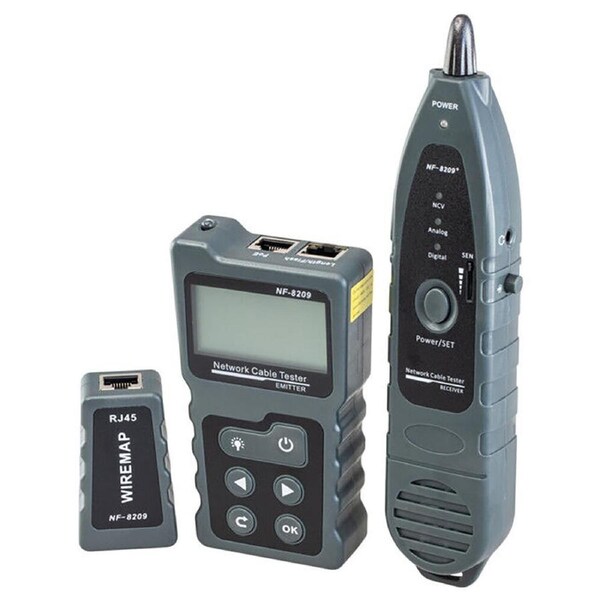

Doss NF8209 Multifunction Cable Tester For CAT5e/CAT6/STP/UTP/LAN Black
Doss NF8209 Multifunction Cable Tester For CAT5e/CAT6/STP/UTP/LAN Black
- POE information testing: Identifying which pins are providing power and detect how much voltage, and which type of the PSE (at/af standard) from DC range 5V to 60V standard or non-standard POE switch.
- Featured with the new generation to offer AC filter and analog signaling all in one network toner and probe, there are three cable scan options to track cable like Digital mode analog mode and PoE mode, which means it's equipped with the most powerful cable location technologies for any work environment.
- Cable continuity testing. Test physical status forCat5e/Cat6, Cat6a STP, UTP LAN cable such as open, short or cross.
- Measure cable length and locate fault distance for LANcable from the range up to 200m.
- Hub blink, Locate network port by the flashing port light on Hub / Switch. Available to 10M/100M Hub/ switch.
- NCV, Non-Contact Voltage, Detect AC voltage presence 50V-1000V.
- Lamp
| Transmitter | Wiremap | Cable type | CAT5e, CAT6, CAT6a (STP & UTP) |
| Test with switch directly | Yes | ||
| Max range | 600m | ||
| Length | Cable type | CAT5e, CAT6, CAT6a (STP & UTP) | |
| Test range | 2~200m | ||
| Accuracy | ±1.6m | ||
| Breakage location | Yes | ||
| Scan | Cable type | CAT5e, CAT6, CAT6a (STP & UTP) | |
| Max. signal voltage | 8Vp-p | ||
| Frequency | 130KHz | ||
| AC filter | Yes | ||
| Max range | 600m | ||
| POE | Test range | DC 5~60V standard / non-standard PoE switch | |
| Voltage display | Yes | ||
| PSE type | IEE?E 802.3af/at | ||
| LCD display | 128*64 Dot-matrix with backlight | ||
| Power supply | AAA*3 | ||
| Low battary warning | 2.7V | ||
| Auto-off time | 15min?30min?60min?OFF | ||
| Max working current | <150mA | ||
| Receiver | Sentivity adjustable | Yes | |
| AC Voltage detecting | Yes | ||
| Lamp | Yes | ||
| Battary type | 9V*1 | ||
| Low battary warning | 6± 0.5V | ||
| Max working current | <100mA | ||
| Remote | Wiremap Port | RJ45 |
- Emitter x 1pc
- Receiver x 1pc
- Wiremap remote x 1pc
- Earphone x 1pc
- Cable adaptor x 1 set
- 9V battery x 1pc
- AAA battery x 3pcs
- Carry bag x 1pc
- User manual x 1pc
Includes:
1 x Cable Tester
