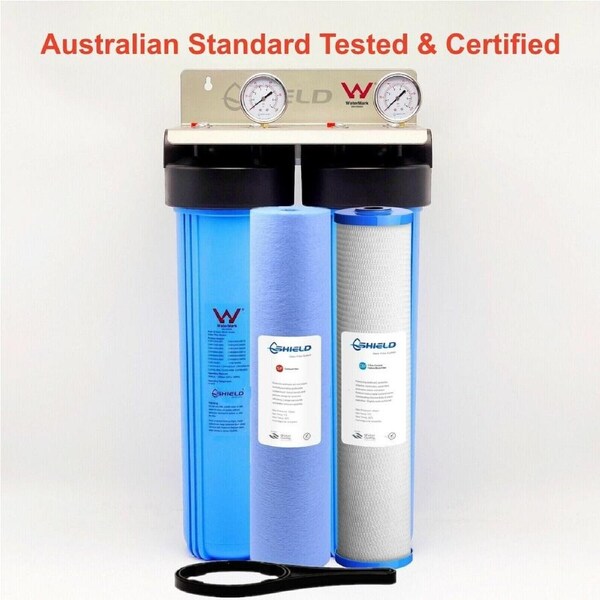

20" x 4.5" Big Blue Whole House Water Filter System Antibacterial Filter + Gauge

• WaterMark AS3497 Certified
• Heavy Duty Double O-Ring Housing
• 1" Brass Threaded Port
• Stainless Steel Bracket
• Stainless Steel Bolt
• 60 mm Stainless Steel Gauge
• Antibacterial Cartridges
• Remove 99.99 Chlorine

• Water Filter System
• Stainless Steel Bracket
• Stainless Steel Pressure Gauge
• 1" Brass Port Housing
• 1 Micron Antibacterial Sediment Filter x 1
• 0.5 Micron Coconut Carbon Block Filter x 1
• Spanner

• 1 Micron Antibacterial Sediment Filter: Up to 12 months
• 0.5 Micron Coconut Carbon Block Filter: Up to 2 months

• Inlet Pressure: 20~100Psi
• Temperature: 4~40°C

Shield whole house water filter efficiently remove mud, sand, rust, chlorine, pesticide and most harmful chemicals to ensure safety water for shower and drinking. Protects hot water heater and washing machine from dirt and particles, improving energy rating for water related electrical equipment. (check performance section for detailed filter performance)

We seek top quality material for high end whole house system. All spec share same feature of stainless steel bracket, brass threaded port, stainless steel fitting and double o-ring housing. We offer best material products in nature no matter the cost. That's one SMALL step for money, one GIANT leap for quality.

10” by 2.5” whole house system suits townhouse or customers with low water consumption. Approximate water flow 15-25LPM. 20” by 2.5” whole house system suits customers have lower water pressure supply. Approximate water flow 20-35LPM. 10” by 4.5” whole house system was good value, better for family less than 5 members. Approximate water flow 25-40LPM. 20” by 4.5” whole house system was highest in value, adequate water flow even for double story house with low water pressure supply. Designed for high flow and numerous consumption user.

All the water flow (LPM) marked for reference only, actual flow depend on pressure supplied, size of piping and design of water circuit. Go for larger capacity to avoid insufficient water supply. All inquiry welcomed, please provide accurate information of water source (city, rain, bore), water nature (chlorine, turbidity, bacteria), floor plan (single double story, No. of toilets) and how many people in the house. We will precisely review and recommend most appropriate system.

Reduces sediment, dirt, rust, algae, turbidity and other particulate contaminants. Shield Sediment Filters are manufactured from pure 100% polypropylene fibers. The polypropylene construction provides superior chemical resistance and does not breed bacterial.

Remove sediment, particles, chemical, heavy metal and some colour extraction. Slightly taste achieved. Shield Carbon Block Filters are manufactured using a powdered COCONUT activated carbon with a specially designed adsorbent media for chemical and reduce chlorine taste & odor and other contaminants. 0.5 Micron carbon block cartridges help reduce sediment.

A water filter removes impurities by lowering contamination of water using a fine physical barrier, or a chemical process. Filters cleanse water to different extents for certain purposes. Here is list of filter performance for our products, please compare the information relatively for your preference. Not all the filters introduced here included in this listing.

20 Micron or 5 Micron Pleated Washable Sediment Filter Pleated filters carry a much larger surface area, therefore they are able to catch a lot more debris Simply remove filter clean and re-use. This equates to a longer period of time before replacing filters. Pleated cartridges are a very popular choice of pre-filter used prior to a finer filter. Very popular for tank water when you have a lot of debris like leaves, dirt or similar particularly after fresh rain. Best part of pleated Sediment Filter was low pressure drop and long life expectancy.

5 Micron, 1 Micron or 0.5 Micron These economical sediment cartridges are constructed from polypropylene which is spun and melted simultaneously. This technique means there is no centre core to restrict filter performance. Sediment filters are compatible with most liquids and are highly effective for sediment, rust, sand, silt, and algae removal. They are extremely high performing and carry a heavy load of sediment before requiring replacement. High efficiency and low on cost.

0.1 Micron Ceramic water filter significantly reduces bacteria, turbidity, foul taste, odor, and more from your drink water. The core tech behind this ceramic filter is unique material, Diatoms. They have tiny, complex ceramic pore structure. The pores are less than one micron in size. Ceramic filter different from polypropylene filters in nature, did not contain any bio or chemical substances, extremely high temperature process, no harmful elements involved whatsoever. This filter will perform and keep your water at peak quality levels up to more than 2 years. Recommend to clean every six month.

Granule Activated Carbon water filters are good at removing organic compounds including volatile organic compounds, pesticides, herbicides, and chlorine. They are also used for taste and odor improvement. What carbon filters don't remove however, are mineral salts, dissolved solids, fluorides. Granule Activated Carbon commonly used as complementary filters in reverse osmosis or UV water filters. They can deliver efficient filtration even by smaller designs, therefore, fitting conveniently in smaller products. They usually good value and completely no pressure drop.

1 Micron 0.5 Micron SHIELD high quality 100% Coconut Carbon filter is the exact filter we use as our front-line carbon filter. As a rule it is difficult to find 100% coconut carbon filters. Lower priced filters on the market are a blend of coconut carbon and coal based carbon. The problem with coal based carbon is that it has a shorter life and often results in a less palatable flavor. These are top of the range HIGH QUALITY coconut carbon block filters are ideal for treatment of organic chemicals, volatile organic chemicals, pesticides, herbicides, chlorine, and perfect for total extraction of town water chemicals. The unique pore structure of this carbon makes immense surface area, is well suited for chemical absorption, including VOC's, while reducing chlorine and chemicals that contribute to taste and odor. Carbon filtration is the best form of filtration for chemical extraction due to the longer and more thorough contact time the water has with the carbon, which in turn provides an extremely comprehensive method of chemical removal. Filter cartridge rated by 'microns'. Microns are a size measurement of the pore size, the smaller the number, the tighter the filter. We HIGHLY recommend this method of filtration for chemical taste and odor extraction.

SHIELD Nano-Silver carbon is impregnated with silver for the added benefits of carbon AND the bacteriological properties of silver impregnation. Whilst carbon effectively removes odors and taste issues from water, it will leave behind microscopic metal compounds in the form of minute ash/dust particles, can become a breeding place for bacteria. Silver Impregnated Carbon is proven to stop the growth of ash/dust fed bacteria. Same all the SHIELD carbon block range, these filters made by sintering high purity coconut activated carbon and UHMWPE (ultra-high molecular weight polyethylene). They provide 10 times the adsorption capacity than others, top quality products over the market.

Ultrafiltration (UF) is a separation process using membranes with pore sizes in the range of 0.1 to 0.01 micron, a low pressure membrane process for water treatment that is designed to remove turbidity causing particles including those comprised of suspended solids, bacteria, colloidal matter and proteins. Typically, UF membranes will remove high molecular-weight substances, colloidal materials, and organic and inorganic polymeric molecules. Because only high-molecular weight species are removed, low applied pressures are therefore sufficient to achieve high flow rates from an Ultrafiltration membrane. UF membranes have a service life of three to five years or longer, which is comparable to reverse osmosis membranes. SHIELD Ultrafiltration modules are made from high strength, chemical resistance hollow fiber membranes that was 0.03 μm nominal pore diameter for removal of bacteria, viruses, and particulates including colloids. The 0.03μm nominal pore size combines high filtration performance and high flow. The smaller pore size provides stable long term filtration performance compared to microfiltation.

Reverse Osmosis FLUORIDE REMOVAL System Enjoy fresh, great tasting water right at home that is perfect for drinking, cooking and making delicious coffee, tea & ice. The RO membrane is the "engine room" of your R/O. All the crucial work is done here, so all the filters before the membrane are primarily there to protect the membrane. SHIELD reverse osmosis (RO) membranes for home drinking water treatment units are among the most reliable and consistent elements in the industry, rated 0.0001-micron filtration. Advanced membrane technology and automated fabrication allow to precisely produce each and every element to tight. SHIELD RO water filter system guaranteed to remove up to 99% of harmful water contaminants such as chlorine, taste, odor, VOCs, as well as toxic fluoride, sodium, arsenic, lead, nitrates, heavy metals, and much more. Rated at 75 GPD or 150 GPD 50% more capacity than ordinary membrane, the non-acidic high flow membrane provides fast flow rate with no wait time. Pure to waste water ratio was 1:1.5, save 50% water than most RO system, while not compromising the performance of the membrane.
