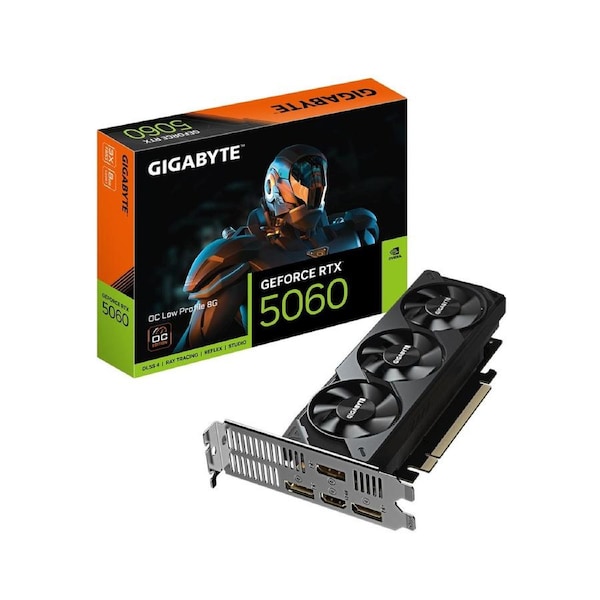

Gigabyte GeForce RTX 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1

Gigabyte GeForce RTX 5060 OC Low Profile 8G, 2512 MHz, CUDA 3840, 28 Gbps, GDDR7, 128 bit, PCI-E 5.0, PSU 450W, DisplayPort 1.4a *1 HDMI 2.1b x1 SPECIFICATION Graphics Processing GeForce RTX 5060 Core Clock 2512 MHz (Reference card : 2497MHz) CUDA Cores 3840 Memory Clock 28 Gbps Memory Size 8 GB Memory Type GDDR7 Memory Bus 128 bit Card Bus PCI-E 5.0 Digital max resolution 7680x4320 Multi-view 4 Card size L=182 W=69 H=36 PCB Form ATX DirectX DirectX 12 API OpenGL 4.6 Recommended PSU 450W Power Connectors 8 Pin*1 Output DisplayPort 2.1b *2 DisplayPort 1.4a *1 HDMI 2.1b *1 Accessories 1. Quick guide 2. Low Profile Bracket FEATURES Powered by the NVIDIA Blackwell architecture and DLSS 4 Powered by GeForce RTX 5060 Integrated with 8GB GDDR7 128 bit memory interface Low Profile Design with 182mm card length Server-grade Thermal conductive gel Graphene Nano Lubricant Supports up to 4 displays NVIDIA Blackwell Architecture The Ultimate Platform for Gamers and Creators Fifth-Gen Tensor Cores Max AI performance with FP4 and DLSS 4 New Streaming Multiprocessors Optimized for neural shaders Fourth-Gen Ray Tracing Cores Built for Mega Geometry GIGABYTE CUSTOM-DESIGNED COOLING SYSTEM GIGABYTE's custom-designed cooling system ensures efficient heat dissipation, featuring server-grade thermal conductive gel, a copper plate with direct GPU contact, and composite copper heat pipes. These elements facilitate enhanced heat transfer to the heatsink, enabling higher performance at lower temperatures. SERVER-GRADE THERMAL CONDUCTIVE GEL To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads. GRAPHENE NANO LUBRICANT Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter. COPPER PLATE & COMPOSITE COPPER HEAT PIPE The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink. EXCELLENCE IN ESSENTIAL LOW PROFILE DESIGN At just 182mm in length, the card is perfect for compact builds. An additional low-profile bracket is included for seamless adaptability to different build needs. AMPLE CONNECTIVITY Enjoy versatile display options with three DisplayPorts and one HDMI port, supporting up to four displays simultaneously. Meets the demands of multi-display setups, high-resolution applications, and delivers an ultimate gaming performance experience.

Ship out the order within 24-48 hours.

Estimated Delivery Time Frame: 2 - 15 business days

Change of mind:
Customer can return the item if purchased by mistake within 14 days of the customer’s order being received.

Change of mind returns will only be eligible for a refund on the product’s sale price within receiving the item'. Return postage is paid by the customer.

Warranty

Without prejudice and to the extent allowed by the Trade Practices Act 1974, The Australian Consumer Law and Competition and Consumer Act 2010, all hardware sold by MAD Electronics Australia is covered by one year limited warranty and is also backed by Australian manufacturer warranty. Where the manufacturer warranty period exceeds one year, we will advise the customer to contact the manufacturer directly for warranty support after the first year of purchase. Due to the nature of consumables products and software, they are not returnable or refundable items.

Any defective products purchased from MAD Electronics Australia and affiliates that fall within the warranty period provided will be covered, unless they fall within the following conditions:

· Physical Damage on the product not caused in the event during transit or Dead on Arrival (DOA) but caused due to mishandling, incorrect use of product for its purposes, improper installation of product, by accident, insect or vermin infestation, improper method or failure to maintain service and handle the item with reasonable care.

· The product has been modified using unauthorised methods. Any modifications on the product including physical and software modifications using third party unauthorised software such as third party firmware updates will void the warranty of products.
· The warranty seal or serial number of the item has been tampered with.
· The item has been serviced by another party other than madelectronics
· Consequential loss including but not limited to data, programs, software or other information stored on storage products, computer or laptop systems.
· Software

Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
