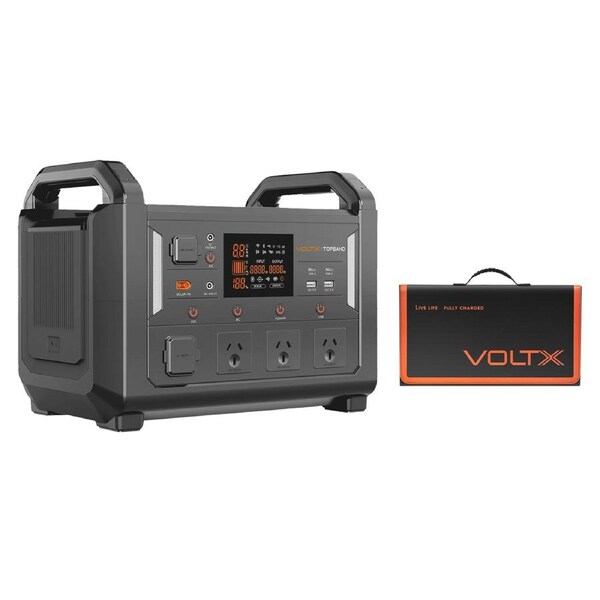

VoltX 1200W Power Station, 100W Solar Panel, DC5521 Cable

• Brand: VoltX
• Model: V1200
• Capacity: 1152Wh
• Battery Type: LiFePO4 (Lithium Iron Phosphate)
• Life Cycles: 4,000+ Cycles
• Shelf-Life: Recharge to 100% Every 3 Months
• Management System: MPPT Controller, BMS
• Charging Method: Solar, Car, AC charging

• AC Output: 3x 200-240V 50/60Hz 1200W (Pure Sine Wave)
• DC Output: 1x DC5521 13V /8A, Max 100W
• USB-C Port: 2x PD100W
• USB-QC Port: 2x 18W Max
• Car Cigarette Lighter: 1x 100W Max

• AC Input: 700W Max, 200-240V (50/60H) / 90-120V (50/60H)
• Solar Input: 550W Max, XT60 11.5V-55V
• DC Input: 240W Max, DC5521 12V/10A, 24V/10A
• AC + DC Input: 700W Max
• Solar + DC Input: 700W Max
• AC + Solar Input: 700W Max
• Maximum Input: 700W
• AC Charge: ≈ 2 Hours
• Solar Charge: ≈ 3 Hours
• DC Charge: ≈ 5.8 Hours

• Display Screen: LCD Display
• Illumination Light: 3W LED with SOS Mode
• Multiple Protection: Lack of Voltage, Over-Temperature, Over-Current, Short-Circuit, Automatic Recovery After Fault Elimination, Short-Circuit, Output Current Protection
• Working Temperature: 0°C-45°C
• Charge Temperature: -5°C-40°C
• Storage Temperature: Normal Temperature Indoor Storage
• Pass-through Charging (UPS): Instantaneous Switch Within 15ms
• Certificates: RCM
• Warranty: 2 years

• Product Size: L365.4xW235xH274.5mm
• Package Size: L480xW370xH370mm
• Net Weight: 13kg
• Gross Weight: 15.5kg

• 1x VoltX V1200 Power Station
• 1x Car Charging Cable
• 1x AC Charging Cable
• 1x XT60 to Anderson cable
• 1x Bag
• 1x UN Carton
• 1x User Manual

• Brand: VoltX
• Max Power: 100W
• Max Power Voltage (Vmp): 18V
• Max Power Current (lmp): 5.56A
• Open-Circuit Voltage (Voc): 21.96V
• Short-Circuit Current (Isc): 5.83A
• Max System Voltage: 500V
• Max Series Fuse Rating: 15A
• Cell Efficiency: 23.5%
• Power Tolerance: 0-3%
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -20°C-65°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.265%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Foldable
• Solar Cell: Monocrystalline Grade A
• Cell Tech: ETFE
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 1.5m Cable With MC4 Connector
• Tie Down Points: Yes, 2 Hanging Ropes
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 1 Year

• Folded Dimensions: L540xW310xH40mm
• Open Dimensions: L1515xW540xH12mm
• Package Dimensions: L560xW330xH90mm
• Net Weight: 3.1kg
• Gross Weight: 3.6kg

• 1x VoltX 100W Foldable Solar Panel
• 1x User Manual

• Input Conenction: MC4
• Cable length: 1.5m
• Colour: Black
