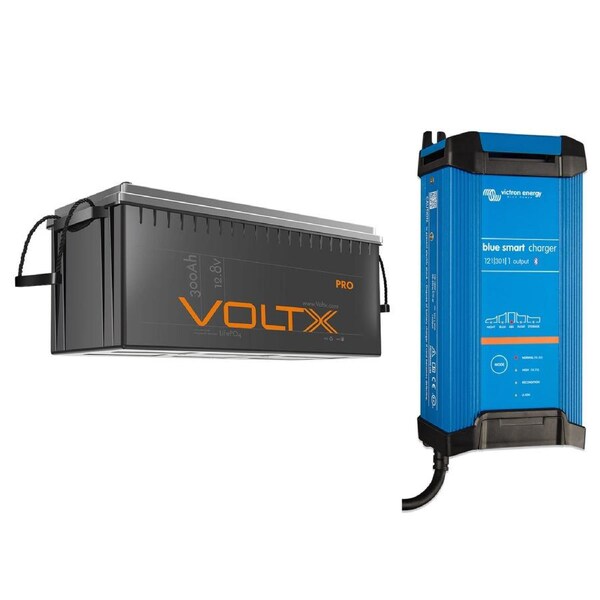

VoltX 12V Lithium Battery 300Ah + Victron 30A AC Charger

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 300Ah
• Rated Energy: 3840Wh
• Approx Life Cycles: 4000
• Battery Manage System: 300A
• Standard Charging Current: 100A
• Max. Charging Current: 300A
• Standard Discharge Current: 200A
• Max. Continuous Discharge Current: 300A
• Max. Discharge Current 5 sec: 600A

• Charger: 14.6V 100A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 300Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L520 x W269 x H220mm
• Package Size: L585 x W340x H305mm
• Net Weight: 28kg
• Gross Weight: 29.2kg

• 1x VoltX Pro 300Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Charge algorithm: TEST / BULK / ABSORPTION / RECONDITION / FLOAT / STORAGE / READY. MODE button to set: NORMAL (14.4V) / HIGH (14.7V) / RECONDITION / LI-ION.
• Input voltage range: 180 - 265 VAC
• Charge current, normal mode: 15 / 20 / 30 A
• Charge current, NIGHT or LOW: 7.5 / 10 / 15 A
• Efficiency: 93 %
• No load power consumption: 0.5 W
• Frequency: 45 - 65 Hz
• Number of outputs : 1
• Charge voltage 'absorption' Normal: 14.4 V High: 14.7 V Li-ion: 14.2 V
• Charge voltage 'float' Normal: 13.8 V High: 13.8 V Li-ion: 13.5 V
• Charge voltage 'storage' Normal: 13.2 V High: 13.2 V Li-ion: 13.5 V
• Charge algorithm: 6-stage adaptive
• Can be used as power supply: Yes
• Protection: Battery reverse polarity (fuse) Output short circuit Over temperature
• Operating temp. range: -40 to +60 °C (full rated output up to 40 °C)
• Humidity (non-condensing): Max 98 %
• ENCLOSURE
• Material & Colour: Aluminium (blue RAL 5012)
• Battery connection: Screw terminals 16 ² / AWG6
• 230 VAC connection: Cable of 1.5 meter with CEE 7/7 plug, BS 1363 plug (UK) or AS/NZS 3112 plug (AU/NZ)
• Protection category: IP22
• Weight :1.3 kg
• Dimensions (h x w x d): 235 x 108 x 65 mm
• STANDARDS
• Safety : EN 60335-1, EN 60335-2-29
• Emission:EN 55014-1, EN 61000-6-3, EN 61000-3-2
• Immunity: EN 55014-2, EN 61000-6-1, EN 61000-6-2, EN 61000-3-3
• Automotive : ECE R10-5
