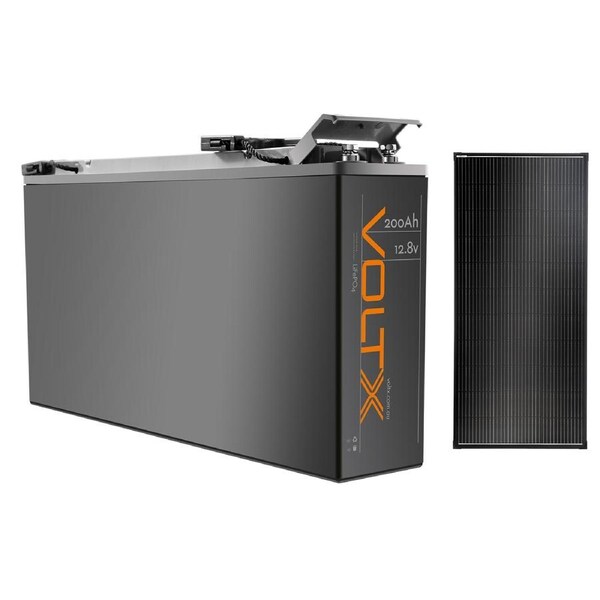

VoltX Slim 12V 2560Wh Lithium Battery + 200W Solar Panel

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Rated Energy: 2560Wh
• Approx Life Cycles: 4000
• Battery Manage System: 150A
• Standard Charging Current: 75A
• Max. Charging Current: 150A
• Standard Discharge Current: 150A
• Max. Continuous Discharge Current: 150A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.4V 75A
• Charging Voltage: 14.2-14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.6V
• Overcharge Recovery: 14.2V
• Overdischarge Protection: 10V
• Overdischarge Recovery: 10.6V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Slim 200Ah
• Certifications: IEC,FCC,UN38.3,CE
• Protection Class: IP65
• Warranty in Years: 5

• Product Size: L552 x W110 x H290mm
• Package Size: L615 x W175x H333mm
• Net Weight: 20.5kg
• Gross Weight: 22kg

• 1x VoltX Slim 200Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Brand: VoltX
• Max Power: 200W
• Max Power Voltage (Vmp): 18.74V
• Max Power Current (lmp): 10.41A
• Open-Circuit Voltage (Voc): 22.86V
• Short-Circuit Current (Isc): 10.93A
• Max System Voltage: 1000V
• Max Series Fuse Rating: 15A
• Module Efficiency STC (%): 19.66%
• Cell Efficiency: 23%
• Power Tolerance: 0-5W
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -40°C-85°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.28%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Fixed
• Solar Cell: Monocrystalline Grade A
• Cell Tech: PERC
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 0.9m Cable With MC4 Connector
• Tie Down Points: Yes, 4 Points
• Frame: Anodized Aluminium Alloy
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 5 Years

• Product Dimensions: L1480xW670xH35mm
• Package Dimensions: L1500xW690xH50mm
• Net Weight: 11kg
• Gross Weight: 11.9kg
