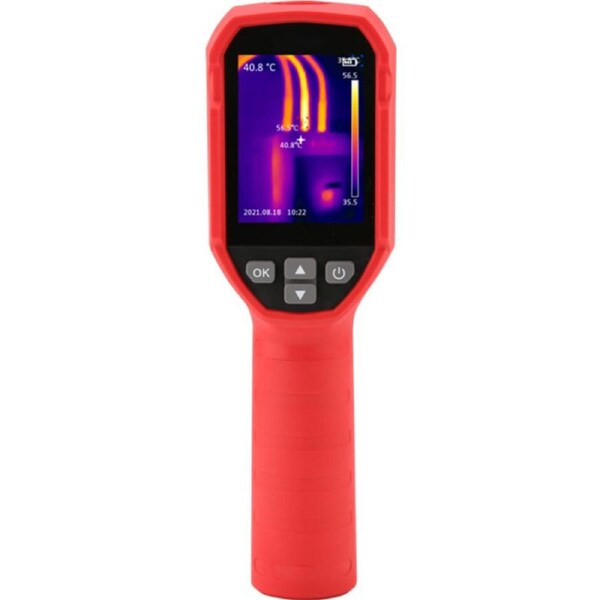

UNI-T UTI712S 2.4" TFT LCD PROFESSIONAL THERMAL IMAGER IR 120X90 IP54 25HZ -20 C ~ 400 C
UTi712S is a compact thermal imager with a quality build. It is one of the best prices for performing thermal imagers in the market today. Some special features include temperature compensation (which allows more accurate readings under different temperature environments). This rugged thermal imager has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
FEATURES
- IR resolution: 120x90 pixels
- 2.4" TFT LCD display (320*240 Resolution)
- 6 Palettes (White hot, Black hot, Iron, Rainbow HC, Rainbow, Lava)
- Emissivity: Adjustable (0.01-1.00)
- Display mode: Thermal
- Temperature compensation
- Image capture
- Laser indicator
- LED flashlight
- Auto tracking for Lo/Hi temperature
- Auto Lo/Hi temperature alarm
- Storage: 32GB Micro SD Card supplied
- PC software Analysis
- Multi-languages: English, German, French, Russian, Spanish
- Protection: IP54 waterproof and dustproof, 2m drop proof
- USB Type-c Charging
- 1/4" tripod mounting hole
- Rechargeable Li-ion battery built-in.
WHAT IS IN THE BOX?
- UTi172S x 1
- Hand strap x 1
- 32G Micro SD card x 1
- USB-A to USB-C Charging cable x 1
- Manual x 1
- Download operation guide card x 1
APPLICATIONS
- Building & HVAC,
Pipeline inspection, House water leakage inspection, Air conditioner outlet inspection, Sealing of doors and windows inspection. - Automotive Maintenance, Engine Inspection,
- Electricity
Power distribution cabinet inspection, Electric power tower inspection, Solar panel inspection - Outdoor
Animal observation, Security
SPECIFICATIONS
| Technical Data | |
| IR resolution (Pixels) | 120x90 (10800) |
| Sensor | Uncooled infrared focal plane |
| thermal imaging sensor | |
| Pixel size | 17um |
| Minimum imaging distance | 0.1m |
| Display | 2.4" TFT LCD (320x240) |
| Field of view(FOV) | 50oHx38oV |
| Thermal sensitivity(NETD) | 60mK |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | 25Hz |
| Infrared spectrum bandwidth | 8~14um |
| Focus | Focus Free |
| Temperature measurement range | -20oC~400oC |
| Accuracy | 2oC or 2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Measurement units | oC/oF |
| Resolution | 0.1oC |
| Functions | |
| Color palettes | 6 |
| (White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava) | |
| Image modes | Thermal |
| Hi/Lo temperature alarm | Icon,LED flashlight,Buzzer |
| Temperature display | Center point temperature, |
| high/low temperature tracking | |
| Buttons | 4 buttons (power, up, down, OK) 1 trigger |
| PC software analysis | Yes |
| Laser pointer | Yes (Class 2) |
| LED light | Yes |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 2600mAh) 18650 |
| Battery operation time | 8 hours |
| Charging time | 2.5h |
| Charging voltage/current | 5V /2A |
| Power on speed | 0s (wake up) / 5s (power on) |
| Auto power off | 5min/10min/30min(default)/off |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 2m |
| Operating temperature | 0-50 oC ( 32-140 oF) |
| Storage temperature | -20 -60 oC (-4 -140 oF) |
| Operating humidity | < 85%RH |
| Image storage | 16GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 310g |
| Product size | 197mmx72mmx60mm |
