Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.
4 meter Ultra low loss LMR 600 equivalent cable is supplied to tackle the loss issue at high frequency (above 5.0GHz).

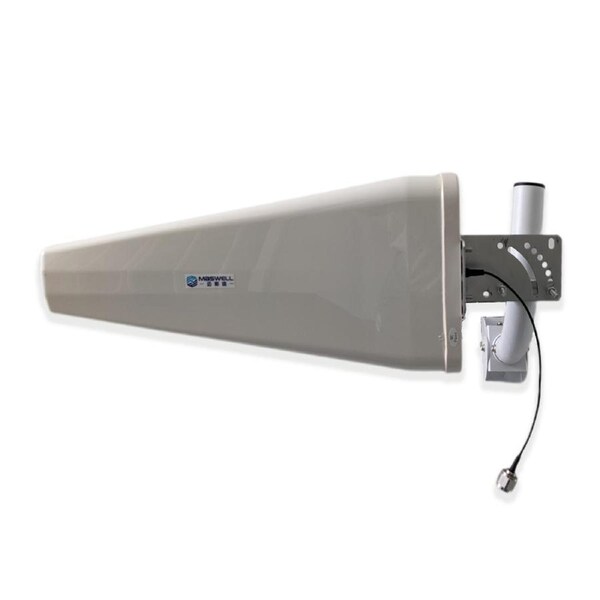

Box 1: LMDA antenna
Box 2: 1 piece of 4 meter ultra low loss cable plus 1 piece of interface cable
ITEM ID:AN_Master_004
High quality ABS antenna radome
7/24 Operation Capability
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
5G bands: All the bands from the globe (including Australia) are supported:600MHz,3500MHz, 4800MHz etc.
4G/3G/GSM bands: All the bands from the globe (including Australia) are supported.
WiFi: All the wifi bands are supported: 2400MHz, 5800MHz and 6000MHz (wifi 6.0)
No matter what protocol you are using, this antenna will be suitable for your wireless applications
Repeater station system.
Suitable for your Celfi booster GO G31, GO G32, GO G41, Quatra 4000e etc.
Long distance telecommunication
Maswell Patented Ultra-Wideband Radiator
Electric specifications:
Frequency 600-6000MHz very wideband
Band Width 5400 MHz
Gain 7.0 dBi (wide beamwidth)
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal or vertical
Maximum power: 100W
Lightning protection: DC ground
Mechanical specifications:
Dimensions: 442*220*64 mm
Cable length: 4 m
Antenna weight: 2 kg
Working Temp -40Degrees Celsius~+85Degrees Celsius
Connector type: SMA male or N male interface cable supplied.
