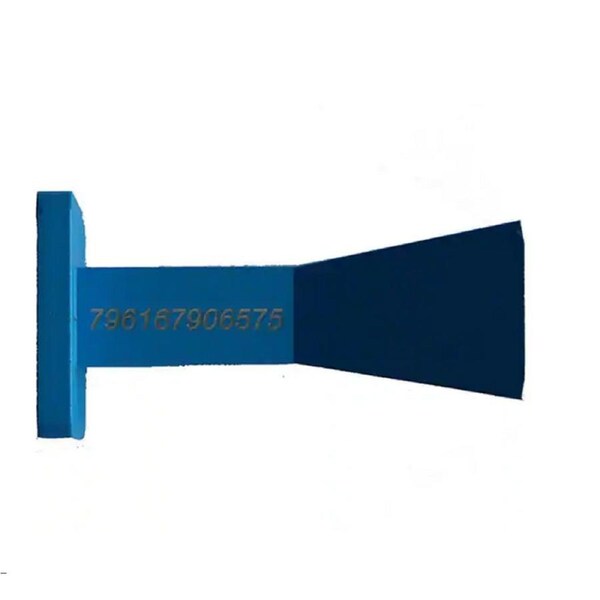

ITEM ID:AN.Horn.5G.mmwave.26.40.WR28
Applications:
5G mmwave bands: All the bands from the globe (including Australia) are supported:26.5-30GHz, 36-40GHz
Repeater station system
High speed telecommunication
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Electric specifications:
Frequency 26.5GHz-40GHz very wideband
Band Width 13.5GHz
Gain 12.0dBi
V.S.W.R ≤1.5
Polarization: linear horizontal or vertical
Maximum power: 100W
Mechanical specifications:
Dimensions: 21.8mm*19.1mm*39.3mm
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Connector type: WR28 Flange UG-599/U
Suitable for all the 5G mmwave bands at a high gain 12dBi.
For mmwave high speed communications.
Package contains:
horn antenna *1
mounting screw *5
