Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.
All purposes internal antenna high gain 9.5dBi for all the wireless protocols you want
5G: the antenna supports all 5G bands from the globe: 2600MHz, 3500MHz and 4800MHz bands!
4G/3G/2G: the antenna support all the bands for 4G,3G,2G from all over the world including Australia!
WiFi Harlow,WiFi 2.4 ,WiFi 5.8G and WiFi 6: All supported!
- Ultra-Wideband (UWB) 3.1-10.6GHz: All supported!
- CB Radio at 477MHz: Supported!
- Lora :Supported!
- DAB Radio: Supported for application purposes!
- Software Defined Radio (SDR): Supported and ideal for SDR application due to wide bandwidth of this antenna.
- FM Radio: Supported for application purposes!
- TV reception: Only for a few channels.
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
ITEM ID:AN.UWB.int4.433.10000.SMA
Frequency 433MHz-10.6GHz
V.S.W.R 2.0 : 1
Band Width ±5 MHz
Impendence 50 ohm
Typical Gain 9.5 dBi Bore-sight Directional
Cable N/A
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Size: 320 x 250mm
Connector: SMA female
Mouting type: PCB mounting holes

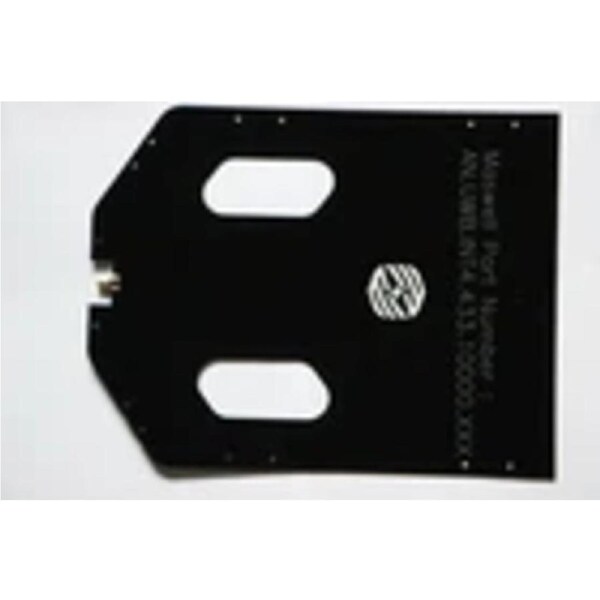

5G Cellular PCB antenna 433MHz-10.6GHz
All purpose antenna for most of the 5G/4G/3G/GSM and WiFi Harlow, WiFi 2.4G, WiFi 5.8G WiFi 6E, CB Radio LoRA and FM bands around the globe including AUS.
Very handy antenna for all your wireless application test and survey!
