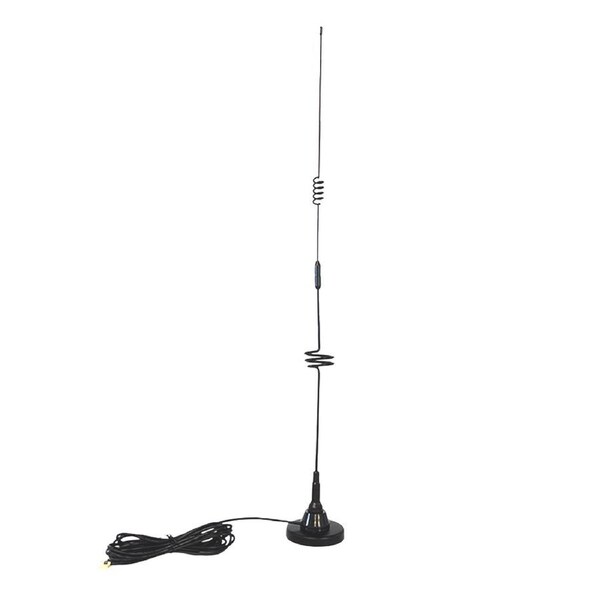

Dipole antenna with Magnetical mounting on bottom
Ideal for GSM 2G/3G/4G weak signal boosting of modem or car.
Double loaded to supply HIGH GAIN (7 dBi)
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
ITEM ID:AN_GSM_825
Frequency 824~960 MHz / 1710~2170 MHz
Polarisation linear
V.S.W.R <2.0 : 1
Band Width ±5 MHz
Impendence 50 ohm
Typical Gain 7 dBi
Cable RG58 (3m)
Connector SMA Male
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Size: Φ70*600mm
Mouting type: Magnetical
Ingress Protection IP67
Vibration 10 to 55Hz with 1.5mm amplitude 2hours
Environmentally Friendly ROHS Compliant
