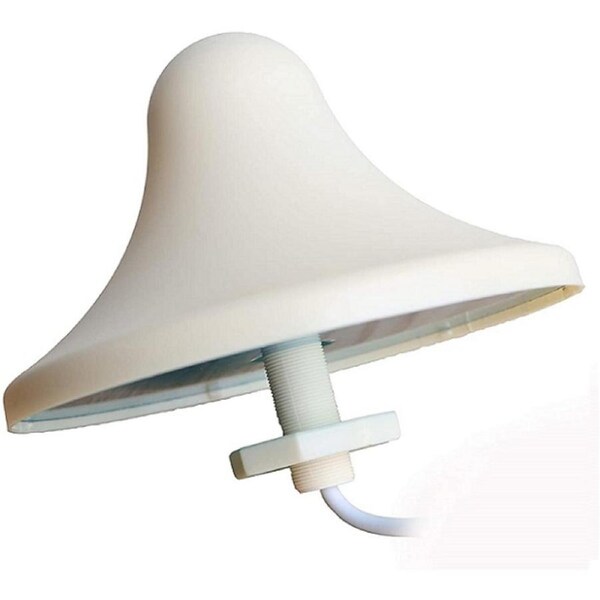

Indoor broadcasting and reception antenna for GSM/3G/4G/WIFI signal boosting with extremely wide bandwidth. Rooftop suitable.
800/850/900/950/1700/1800/1900/2100/2400 MHz frequency bands
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
ITEM ID:AN_GSM_077
Frequency (very wideband) 806~960MHz / 1710~2500 MHz
Polarisation Vertical Linear
V.S.W.R 1.5 : 1
Band Width 154MHz /790 MHz
Impedance 50 Ohms
Typical Gain 3.0 dBi
Cable RG58 (3m)
Connector SMA male
Beamwidth Horizontal 360 degrees, Vertical 55 degrees
Working Temp -30 Degrees Celsius~+75 Degrees Celsius
Size: D168*95 mm
Mouting type: Screw
Housing White Plastic
