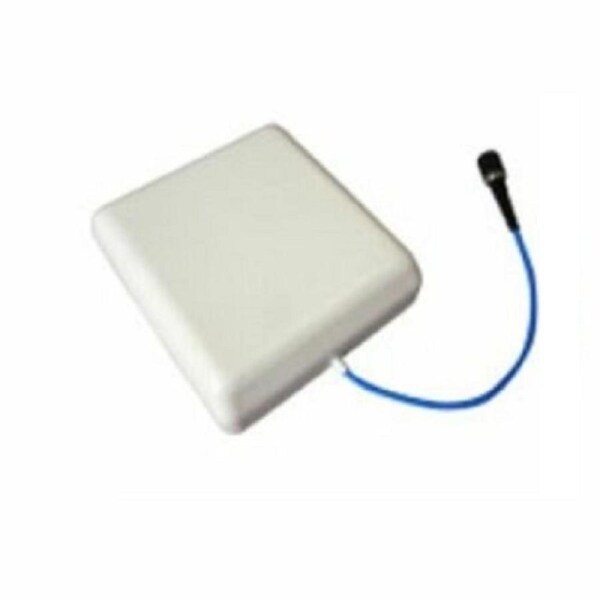

ITEM ID:AN_GSM_Array_04
Ideally for dual band GSM/3G/4G/LTE and WIFI signal boosting. It covers almost all the signal bands!!
Outdoor wall/roof mount antenna for GSM/3G/4G and wifi signal boosting with high gain up to 8.0 dBi
Suitable for Telstra, Optus and vodafone!
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Frequency 698MHz to 960MHz
1710 MHz to 2700 MHz
Polarisation Vertical Linear
V.S.W.R 1.5 : 1
Band Width 262MHz for low band and 990 MHz for high band
Impedance 50 Ohms
Typical Gain 5dBi 698MHz to 960MHz
8dBi 1710 MHz to 2700 MHz
Cable RG58(4m)
Connector SMA male
Working Temp -30 Degrees Celsius~+75 Degrees Celsius
Size: 165 mm *155 mm *50 mm
Mouting type: Screw
Housing White Plastic
