Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.

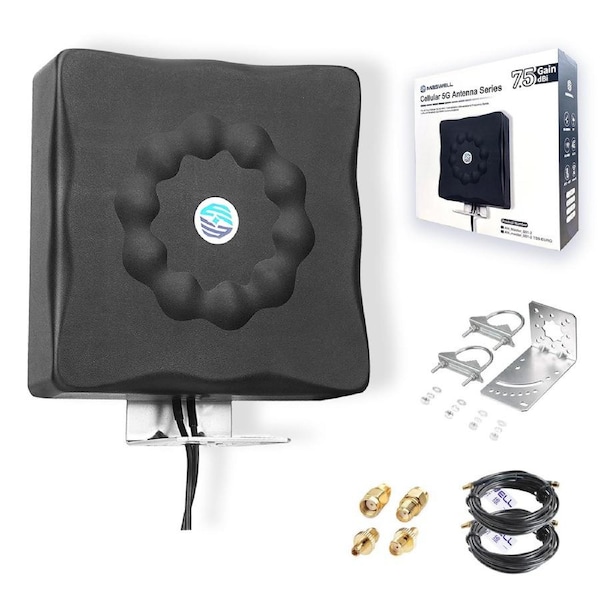

600MHz-8000MHz Ultra Wideband MIMO panel antenna for cellular 5G 4G and WiFi 6 applications with two leads
ITEM ID:AN_Master_001-2
High quality ASA antenna radome UV Stabilized
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Applications:
5G bands: All the bands from the globe (including Australia) are supported:600MHz,3500MHz, 4800MHz etc.
4G/3G/GSM bands: All the bands from the globe (including Australia) are supported.
WiFi: All the wifi bands are supported: 2400MHz, 5800MHz and 6000MHz (wifi 6.0)
No matter what protocol you are using, this antenna will be suitable for your wireless applications
Repeater station system
Long distance telecommunication
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Electric specifications:
Frequency 600-8000MHz very wideband
Band Width 7400 MHz
Gain up to 7.5 dBi
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal or vertical
Maximum power: 100W
Lightning protection: DC ground
Mechanical specifications:
Dimensions: 22cm*22cm*4.5cm
Cable length: 2 m
Antenna weight: 1.4 kg
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Connector type: SMA male for both leads
UV stabilized: Yes
Waterproof Grade: IP 67
EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 67 Standard PASSED: GB/T4208-2017
Mounting type:U bolt or Screw
Outdoor wall/roof mount antenna for 5G/GSM/3G/4G signal boosting
UV stabilized ASA radome plus IP 67 grade water proof (up to 30 minutes underwater)
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone
Each Leads suitable for 5G 4G 3G and WiFi applications.
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
