Brand Name: Maswell
RF Outlet is Australian selling channel for Maswell antennas.

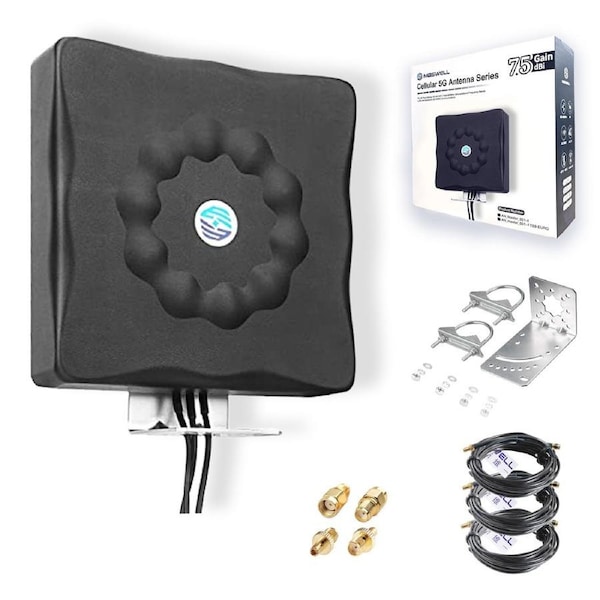

600MHz-8000MHz Ultra Wideband MIMO panel antenna for cellular 5G 4G and WiFi 6 applications plus GNSS (GPS GLONASS GAILEO BEIDOU) with 3 leads
ITEM ID:AN_Master_001-4
High quality ASA antenna radome UV Stabilized
7/24 Operation Capability
Applications:
5G bands: All the bands from the globe (including Australia) are supported:600MHz,3500MHz, 4800MHz etc.
4G/3G/GSM bands: All the bands from the globe (including Australia) are supported.
WiFi: All the wifi bands are supported: 2400MHz, 5800MHz and 6000MHz (wifi 6.0)
GNSS GPS GLONASS GAILEO BEIDOU all satellites L1 bands supported
No matter what protocol you are using, this antenna will be suitable for your wireless applications
Repeater station system
Long distance telecommunication
For all your CelFi RF Repeaters and Car GPS/GNSS system (3 leads): Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Cellular Specifications:
Antenna 1 Frequency: 600-8000MHz very wideband
Antenna 2 Frequency: 600-8000MHz very wideband
Band Width 7400 MHz
Gain up to 7.5 dBi
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal or vertical
Maximum power: 50W
Antenna 3 GNSS Specifications :
Centre Frequency 1561MHz-1602MHz (GPS GOLANSS Beidou Gaileo L1 bands)
V.S.W.R(5m) 2 : 1
Band Width ±5MHz
Impendence 50 ohm
Polarization Type RHCP
LNA/Filter
LNA Gain(Without cable) 28±2 dB Typical
Noise Figure 1.5dB
DC Voltage 2.2~5V
DC current 5~15 mA
Mechanical specifications:
Dimensions: 22cm*22cm*4.5cm
Cable length: 2 m
Antenna weight: 1.5 kg
Working Temp -40 Degrees Celsius~+85 Degrees Celsius
Connector type: SMA male for 3 leads
UV stabilized: Yes
Waterproof Grade: IP67
EU IP67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP67 Standard PASSED: GB/T4208-2017
GNSS antenna: GPS GLONASS GAILEO BEIDOU supported.
Outdoor wall/roof mount antenna for 5G/GSM/3G/4G signal boosting
UV stabilized ASA radome plus IP67 grade water proof (up to 30 minutes underwater)
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone
2 Leads suitable for 5G 4G 3G and WiFi applications, the third for GNSS (GPS GLONASS GAILEO BEIDOU).
For all your CelFi RF Repeaters and Car GPS/GNSS system 3 leads: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelF
