Compatibility:
VW MFD2, RNS2 in Golf 5, Golf Plus, Passat, Jetta, Touran, Touareg, T5, T5 MULTIVAN,
AUDIRNS-E 16:9 in A3, A4, A6,
Comand APS in Mercedes W211 E-Klasse i APS 50 CLK W209,
BlaupunktTravel Pilot EX
Specification:
Ideal for GPS signal boosting on car or room roof.
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
ITEM ID:AN_GPS_A001

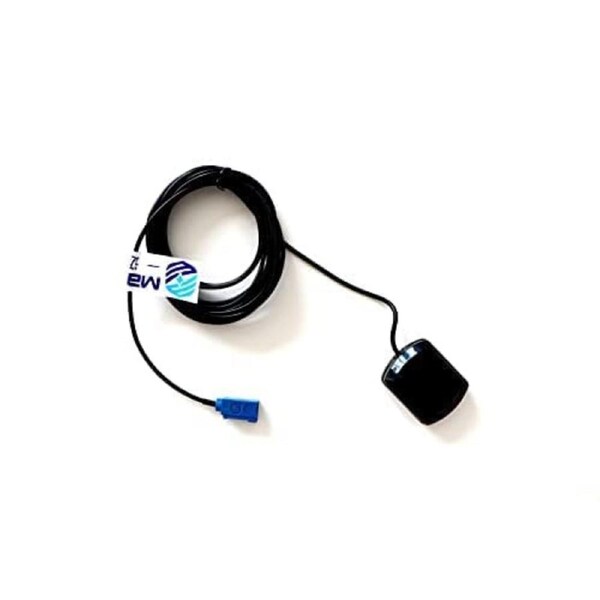

GPS Active Antenna
Centre Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 28±2 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC current 5~15 mA
Cable RG174 (3m)
Connector FAKRA Straight male
Housing Black
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67
Size: 48*39*14mm
Mounting type: Magnet
Rectangular shape with Magnetical mounting on back side.
