ITEM ID:AN_GPS_A228B

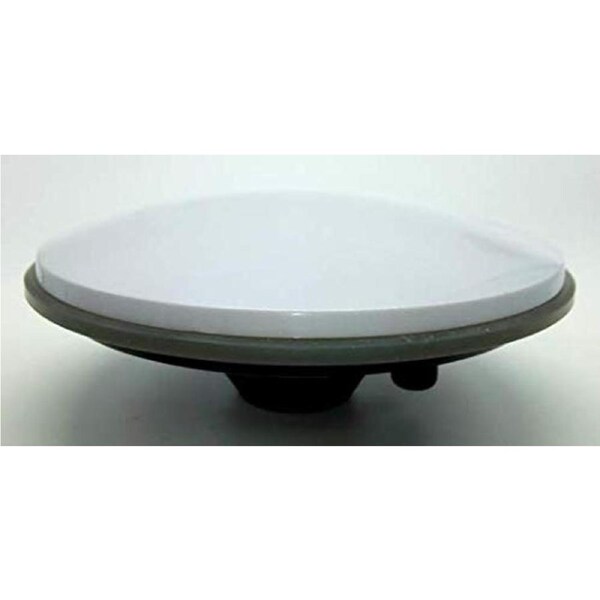

Precise GNSS survey Antenna all bands and Satellite included.
GPS,GLONASS,Galileo and Compass.
Centimeter level Accuracy.
Ideal for GNSS survey, UAV etc. for high precise location survey!
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Specifications
Center Frequency: GPS L1/L2
GLONASS G1/G2
COMPASS B1/B2/B3
Galileo E1/L1/E2/E5b/E6
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP with 5.5dBi gain
Phase center error ±2 mm
Horizontal coverage angle 360°
LNA / Filter
LNA Gain(Without cable) 40 dB±2dB Typical
Noise Figure 1.5 dB
DC Voltage 3~12 V
DC Current < 50mA
Noise Figure <1.5dB
Filter insertion loss <3dB
Cable N/A
Connector TNC
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67
Size D151.5*66.5mm
Mounting type Screw
