ITEM ID:AN_GPS_A005

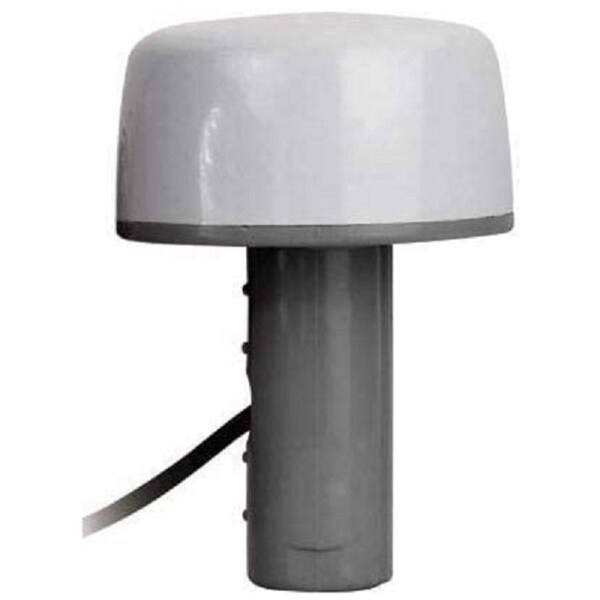

GPS heavy duty Antenna for Marine and Vehicular applications.
Ideal for Marine or Vehicular roof top assembly to receive both GPS signal.
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Specification:
Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP with 5dBi gain
LNA / Filter
LNA Gain(Without cable) 42 dB±2dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 18~35 mA
Noise Figure <1.5dB
Filter insertion loss <3dB
Cable RG58 (3m)
Connector SMA (male)
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67
Size D93.5*133.3mm
Mounting type Screw M26
