ITEM ID:AN_GPS_GSM_008 GLONASS

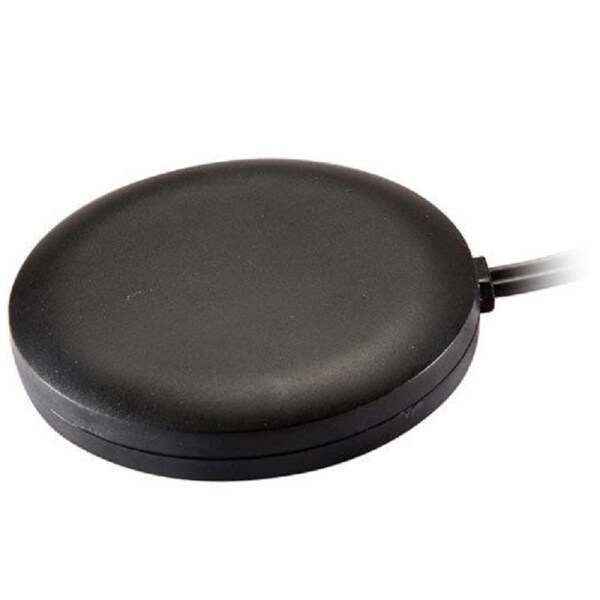

GPS/GLONASS+GSM/3G/4G Combination Antenna
The combo antenna has two leads. One lead support various GSM/3G/4G signal and the other lead support GPS for your tracking and navigation service!
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
GPS Part
Center Frequency 1575.42 MHz±3 MHz
V.S.W.R 1.5 : 1
Band Width ±5 MHz
Impendence 50 ohm
Polarization Type RHCP
LNA / Filter
LNA Gain(Without cable) 30 dB Typical
Noise Figure 1.5 dB
DC Voltage 2.2~5 V
DC Current 5~15 mA
GSM Part
Frequency 824~894MHz/1710~2190MHz
880~960MHz/1710~2190MHz
V.S.W.R 2.0:1
Impendence 50 ohm
Typical Gain 2dBi
Cable 2 leads with RG174 (3m)
Connectors SMA (male)
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
Waterproof IP67
Size D80x15mm
Mounting type magnet
Two pieces of 3m cable assembled: one for GSM/3G/4G, the other for GPS
