Brand Maswell
ITEM ID:AN_GSM_401

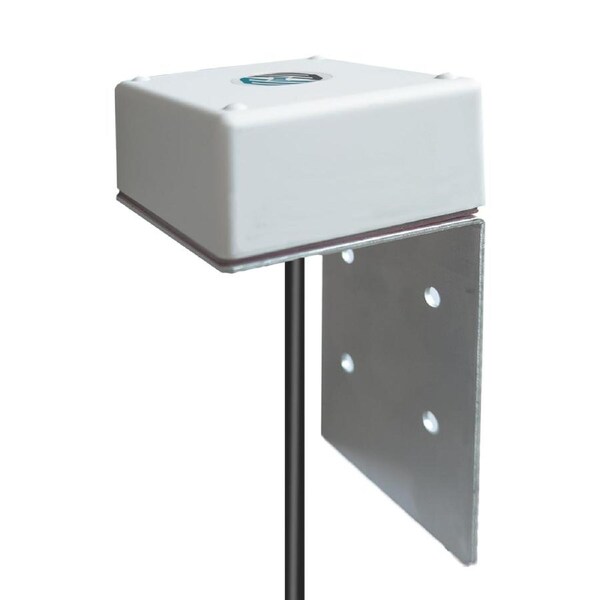

High quality ASA antenna radome UV Stabilized and Nylon Overbraids for Outdoor Applications
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
AN_GSM_401 product design is a project supervised by Australian Chartered Engineer.
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Specification
Centre Frequency 700-6000MHz
V.S.W.R 2 : 1
Band Width 5300Mhz
Impendence 50 ohm
Polarization Type Linear
Gain 2dBi (standard gain design for daily cellular reception, not for high gain requirements)
Cable LMR195 3meters with Nylon Overbraids
Connector SMA Male
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
UV stabilized Yes
Water proof IP67
EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 67 Standard PASSED: GB/T4208-2017
Size: 55mm *55mm*26.5mm
Mounting type: M12 Screw and 3M adhesive
The antenna must be mounted on the supplied L plate or on a metal surface of 10cm by 10cm or larger
The antenna is for area with good signal coverages as it is a moderate gain design for small size.
Outdoor wall/roof mount antenna for 5G/4G/LTE/3G/GSM WiFi applications
LMR195 3meters Lead with Nylon Overbraids for premium outdoor or machinery applications.
UV stabilized ASA radome plus IP 67 grade water proof (up to 30 minutes underwater)
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone
Suitable for 5G 4G 3G and WiFi applications.
Square shape with M12 screw and 3M Adhesive Mounting
Waterproof Demonstration Video:
https://youtu.be/Rt9pCCc2w3g
Installation Demonstration Video:
https://youtu.be/L2AhCUKI6zY
