ITEM ID:AN.AG50.4Cell.6000.40

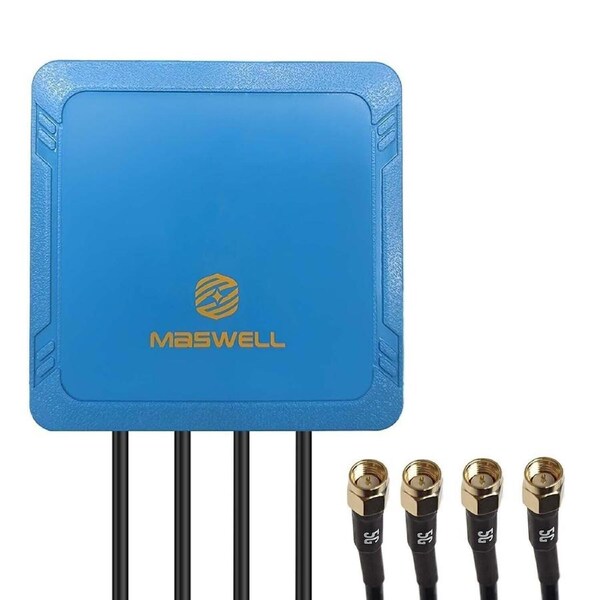

High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 700-6000Mhz.
4 X SMA male connectors leads.
Medium 3.0 dBi gain for all your Cellular and wifi applications, NOT a high gain version.
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Applications:
GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!
Repeater station system
Long distance telecommunication
Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported
Electric specifications:
Antenna 1~Antenna 4:
Frequency 700-6000MHz
Band Width 5300 MHz
Gain 3dBi medium gain (NOT high gain)
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Mechanical specifications:
Dimensions: 120mm *120mm*55mm
Working Temp -40Degrees Celsius~+85Degrees Celsius
Mounting type: Screw and 3M Adhesive
Waterproof: IP 66
EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 66 Standard PASSED: GB/T4208-2017
Cable Length: LMR 195 1m (4 leads)
Connector type: SMA male for ALL 4 leads
Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO
Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.
7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
