Brand Name: MASWELL
ITEM ID:AN.4MIMO.600.8000.UB3

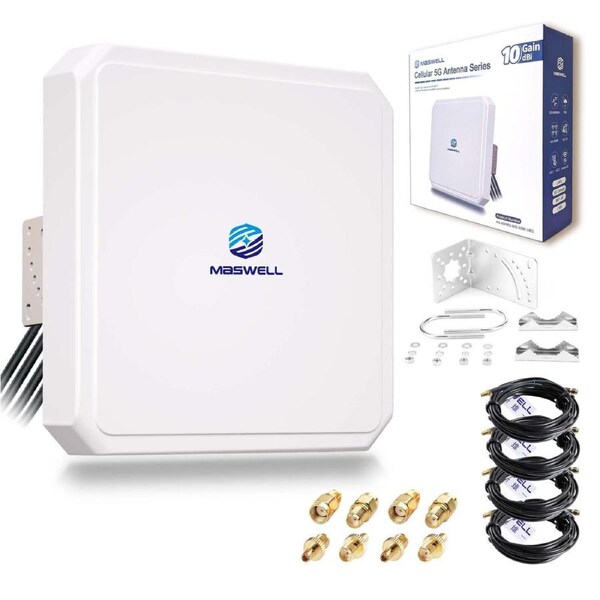

High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 600-8000Mhz.
- All TS9, SMA male and RP SMA plug supported
- 4 X SMA male connectors leads, 4 TS9 adapters and 4 RP SMA plug Adapters.
- High Gain 10.0 dBi gain for all your Cellular and wifi applications.
- All WiFi bands supported WiFi Halow WiFi 2.4 GHz and WiFi 7 at 7.125GHz.
- 7/24 Operation Capability
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
For all your Nighthawk 5G router series, Huawei CPE, ZTE 5G Routers and All WiFi 7 routers
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Applications:
GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!
Repeater station system
Long distance telecommunication
Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported for Mobile Routers
WiFi7 Routers
Electric specifications:
Antenna 1~Antenna 4:
Frequency 600-8000MHz
Band Width 7300 MHz
Gain 10 dBi high gain
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Connector: SMA male, TS9 and RP SMA Plug
Mechanical specifications:
Dimensions: 260mm *260mm*46mm
Working Temp -40Degrees Celsius~+85Degrees Celsius
Mounting type: Screw U bolt installation (Bracket included)
Waterproof: IP 66
EU IP 66 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 66 Standard PASSED: GB/T4208-2017
Cable Length: LMR 200 2m (4 leads)
Outdoor U bolt screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO
Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and WiFi 7.
Suitable for all the Australian telcos' bands: Telstra, Optus and Vodafone
Each Leads suitable for 5G 4G 3G and WiFi 7 applications.
IP66 Waterproof for Outdoor applications.
