ITEM ID:AN_Master_Cubic_2C2W-LP
Brand Name Maswell
AN_Master_Cubic_2C2W-LP is a design project supervised by Australia Charted Engineer.
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.

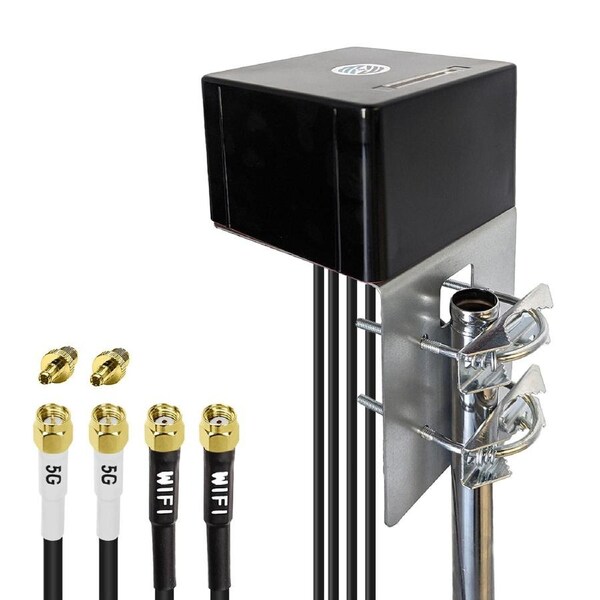

The package contains the antenna plus L shape plate/bracket and U bolts/ screws
- High quality Cellular 2X2 MIMO Antenna for 5G 4G LTE 3G signal boosting antenna 600-8
- High quality WiFi 7 WiFi 6E 2X2 MIMO Antenna for WiFi 7 WiFi 6E Bluetooth Zigbee Wimax 2100-8000MHz
- 2 X SMA male connectors leads 2 meters for 5G Cellular 2X RP SMA Plug connector lead 2 meters for WiFi.
- High Gain 6.0 dBi (@20cm) for all your Cellular and WiFi applications, NOT a high gain version.
- 7/24 Operation Capability IP67Waterproof.
- Glossy Black Radome with UV stabilized Capacity
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Applications:
- GSM/3G/4G/LTE/5G 700/850/900/1800/2100/2600/3500/4800MHz PHS system!
Repeater station system
- Telstra, Optus, Vodafone : All 5G 4G LTE 3G Supported
- WiFi routers Bluetooth Wimax Zigbee IoT M2M devices
- For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Electric specifications:
Antenna 1~Antenna 2:
Frequency 600-8000MHz
Band Width 7400 MHz
Gain 6dBi (@20cm cable)
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Antenna 3-Antenna 4:
Frequency 2100-7200MHz
Band Width 5100 MHz
Gain 6dBi (@20cm cable)
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Mechanical specifications:
Dimensions: 122mm *122mm*91mm
Working Temp -40Degrees Celsius~+85Degrees Celsius
Mounting type: Screw and 3M Adhesive
Waterproof: IP 67
EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 67 Standard PASSED: GB/T4208-2017
Cable Length: LMR 195 2m (4 leads)
Connector type: SMA male for 5G 2x2 MIMO 2 Leads
RP SMA plug for WiFi 2x2 MIMO 2 Leads
