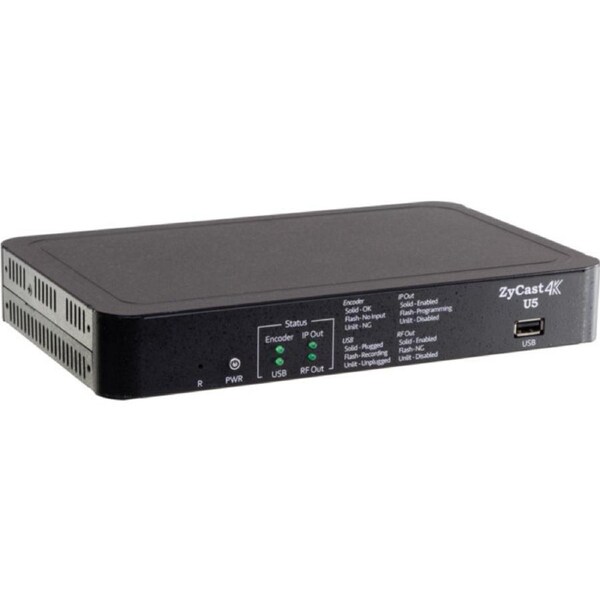

ZyCast U5 Single Channel 4K HEVC Modulator and IP Streamer SRT Streaming Recorder RTSP UDP RTP Multicast
U5 ZYCAST SINGLE CHANNEL 4K HEVC MODULATOR AND IP STREAMER
ZyCast's Single Channel U5 HEVC Encoder is a cutting-edge broadcasting solution that combines versatility, efficiency, and ultra-high-definition video encoding. Designed to meet the demands of modern broadcasters and content creators, this encoder is engineered to deliver exceptional performance and flexibility.
With the ZyCast Single Channel U5 HEVC Encoder, you can effortlessly encode video content into the RF standard of your choice (DVB-C, DVB-T, J.83B, ISDB-Tb, DVB-T2*1). Whether you require RF output or prefer the convenience of an IP video stream, this encoder has you covered.
Equipped with state-of-the-art HEVC (High-Efficiency Video Coding) technology, the ZyCast U5 encoder maximizes video compression efficiency, reducing bandwidth requirements without compromising on visual quality. This advanced encoding capability allows for the delivery of stunning, high-resolution content up to 4096 x 2160 pixels, ensuring an immersive viewing experience for your audience.
Thanks to its simultaneous RF and IP output capabilities, this encoder offers exceptional flexibility in content distribution. Whether you need to broadcast content over traditional RF networks or deliver content over IP-based platforms (UDP/RTP Multicast/Unicast, RTSP, SRT.)
In summary, the ZyCast Single Channel U5 HEVC Encoder combines the power of HEVC encoding, multiple standard RF output, and simultaneous IP streaming in resolutions up to 4096 x 2160 pixels. This encoder is the ideal solution for broadcasters and content creators seeking to deliver exceptional video content across various platforms. Upgrade your broadcasting capabilities with the ZyCast U5 encoder and unlock a world of possibilities.
FEATURES
- Video Resolution Up To 4096 x 2160p60.
- HDMI 2.0 & HDCP 2.2 Compliant.
- Video Codec: HEVC (H.265) and AVC (H.264).
- Audio Codec: MP2, AAC, AC3.
- HEVC (H.265) Profile: Main 4:2:0 8-Bit.
- RF Out Standards: DVB-T, ATSC, QAM-B (J.83), ISDB-Tb, DVB-C, DVB-T2 (DVB-T2 Requires Additional Firmware License).
- Supports Multicast/Unicast, RTSP, and SRT Streaming Protocol.
- Friendly and Powerful Web User Interface Saves Your Setup Time (English and Spanish).
- Allows for Stream Recoding Using External USB Drive.
SPECIFICATIONS
| Video / Audio Input | ||
|---|---|---|
| HDMI 2.0 | Single Connector | |
| HDCP Compliance | 2.2 | |
| Loopthrough | To Be Developed | |
| Encoding Profile | ||
| Input Resolution |
|
|
| Encoding Resolution | Same as Input | |
| HEVC (H.265) Tiers and Levels |
|
|
| HEVC (H.265) Profile | Main; 4:2:0; 8-bit | |
| H.264 Encoding |
|
|
| Encode Bitrate | 1Mbps to 30Mbps | |
| Rate Control | VBR, CBR | |
| Audio Codecs | MPEG-1 Layer II /MPEG-4 AAC-LC in ADTS / AC-3 | |
| Sampling Rate | 44.1 and 48KHz | |
| Recording (Simultaneous Streaming & Recording) | ||
| Recording | USB 2.0 (MPEG-TS) FTP Upload (To Be Developed) | |
| IP Output | ||
| Connector | RJ-45 x 1 | |
| Standard | 1000 Base-T Ethernet, Full Duplex | |
| Streaming Protocol |
|
|
| General | ||
| Local Monitoring | 4 Indicator LEDs | |
| GUI Supported | Firefox, Chrome and Edge | |
| Password Protected | GUI: Changeable | |
| Power Supply | 12V DC, 1.5A | |
| Consumption | 0.75A, 9W Typical | |
| Dimensions | 236mm x 145mm x 35mm | |
| Language | English or Spanish | |
| RF Output | ||
| Connector | 1 x "F", Female | |
| Output Level | 35dBmV | |
| Output Impedance | 75Ohm (Ohm) | |
| Level Adjustment | 0 to 20 dB | |
| Carrier Suppression | 55 dB | |
| Output Return... |
