Description:
ITEM ID:AN_Master_Cubic_4C
Brand Name Maswell

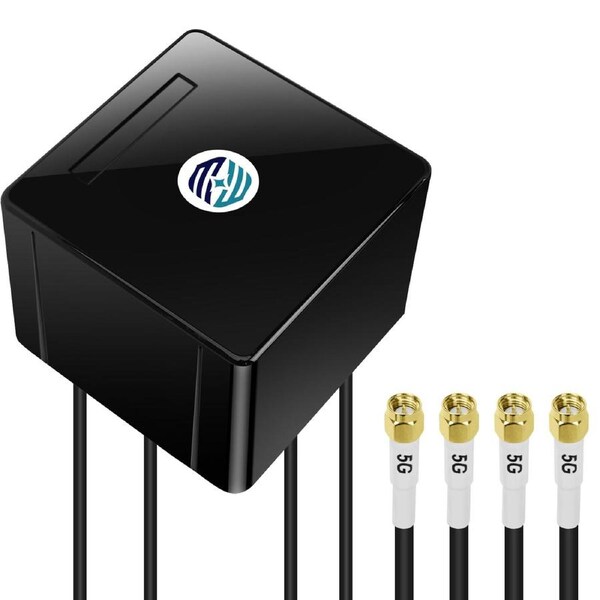

AN_Master_Cubic_4C is a design project supervised by Australia Charted Engineer.
- High quality Cellular 4X4 MIMO Antenna for 5G 4G LTE 3G WiFi 6E signal boosting antenna 600-8000Mhz.
- 4 X SMA male connectors leads.
- High Gain 6.0 dBi (at 20cm cable length) for all your Cellular and WiFi 6E/WiFi 7 applications
- IP67 Waterproof 7/24 Operation Capability
- Glossy Black Radome with UV Stabilized Capacity
Telstra: ALL 5G 4G LTE 3G Supported
Optus: ALL 5G 4G LTE 3G Supported
Vodafone: ALL 5G 4G LTE 3G Supported
WiFi: WiFi 2.4GHz WiFi 5GHz WiFi 6, WiFi 6E at 7.125GHz WiFi 7 All Supported (adapter may be required)
For all your CelFi signal repeaters: Cel Fi Pro, CelFi Solo, CelFi Go G32, CelFi Go G31,CelFi Go G41
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Electric specifications:
Antenna 1~Antenna 4:
Frequency 600-8000MHz
Band Width 7400 MHz
Gain 6dBi (@20cm cable)
V.S.W.R ≤2
Input Impendence 50 ohm
Polarization: linear horizontal/vertical
Maximum power: 50W
Isolation: 10dB
Mechanical specifications:
Dimensions: 122mm *122mm*91mm
Working Temp -40Degrees Celsius~+85Degrees Celsius
Mounting type: Screw and 3M Adhesive
Waterproof: IP 67 EU IP 67 standard PASSED: EN 60529:1991+A1:2000+A2:2013+AC:2019
China IP 67 Standard PASSED: GB/T4208-2017
Cable Length: LMR 195 2m (4 leads)
Connector type: SMA male for ALL 4 leads
- Outdoor screw mount antenna for GSM/3G/4G/5G signal boosting with 4*4 MIMO
- Suitable for Telstra, Optus, VHALTE 1800,LTE 850 and 3G/4G and wifi.
- 7/24 Operation Capability
- Telstra: ALL 5G 4G LTE 3G Supported
- Optus: ALL 5G 4G LTE 3G Supported
- Vodafone: ALL 5G 4G LTE 3G Supported
