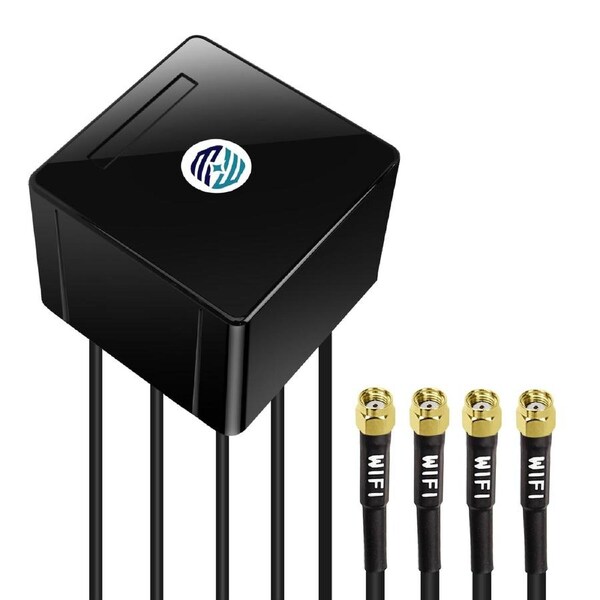

Description:
Brand Maswell
ITEM ID:AN_Master_Cubic_4W
All WiFi Bands Supported: WiFi 2.4GHz, WiFi 5GHz, WiFi 6 and WiFi 6E at 7.125GHz 4X4 MIMO version
All Bluetooth Zigbee Wimax bands Supported
M2M Communication, Router signal reception, Vending Machine and IoT Boxes outdoor and indoor applications.
IP66 waterproof standard passed: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201
Screw Mount with 3M adhesive under the radome
Domestic shipment
Packages are generally dispatched within 2 days after receipt of payment and shipped via Australia Post.If you prefer delivery by Express Post, an additional cost will be applied,so please contact us via ebay messages before choosing this method.
Shipping fees include handing and packing fees as well as postage costs.Handing fees are fixed ,whereas transport fees vary according to total weight of the shipment. We advise you to group your items in one order. We cannot group two distinct orders placed seperately,and shipping fees will apply to each of them.
Warranty and Return:
All of our product has a standard 1 year return to base warranty. If you are not satisfied when you receive your item, please return it within 30 days for a replacement or money back. Please contact us before you return it.
Specifications
Antenna1-Antenna 4:
Operation Frequency 2100-7200MHz
Gain: 4dBi Omnidirectional
V.S.W.R(5m) 2 : 1
Band Width 5100Mhz
Impendence 50 ohm
Polarization Type Linear
Cable LMR195 (2m)
Connector RP SMA plug for all 4 leads
Working Temp -40Degrees Celsius~+85Degrees Celsius
Humidity 55%~75%RH
UV Stabilized Yes
Waterproof IP67: EN 60529:1991+A1:2000+A2:2013+AC:2019 and GB/T4208-201
Size: 122mm *122mm*91mm
Mounting type: M24 Screw Mount and 3M adhesive
- Works for 2.4GH WiFi, WiFi 5G ,WiFi 6, WiFi 6E and all the Bluetooth Wimax Zigbee equipment
- Square shape with M28 screw and 3M adhesive mounting.
- Suitable for various routers indoor/outdoor wifi/bluetooth/zigbee/wimax signals transmitting and reception
- IP 67 waterproof: for all outdoor environment
- Compatible with M2M communication for Vending Machine IoT Box Vehicular Equipments,
- Glossy Black Radome with UV stabilized capacity
- WiFi 6E @7.125GHz Suitable!
