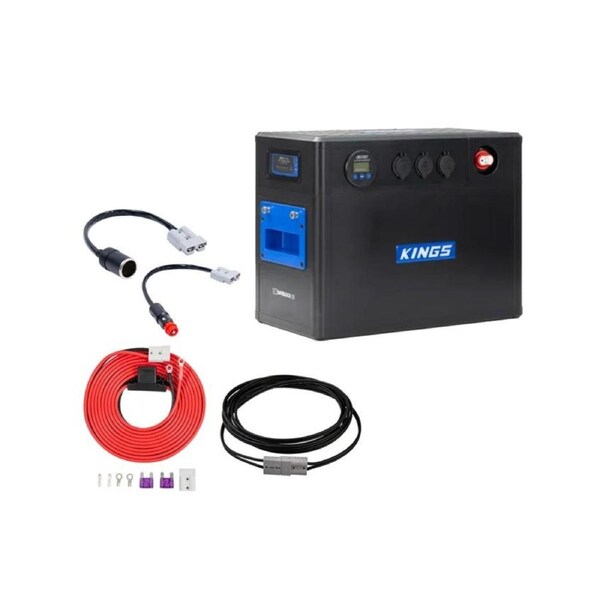

Kings BatBlock25 + Wiring Value Pack 6m lead+ 25A wiring kit +Anderson Cig plug
• The perfect partner for your portable solar blankets or panels, the 6 metre cable length allowing you to camp in the cool shade and still set up your solar in full sun. Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. The Anderson-compatible quick connect plugs are rated for up to 50A of current and make setting up camp quick and easy.
• The Kings 25A DC Wiring Kit suits the Kings 25A DC Charger and measures six metres long, which gives you the length you need to reach from your starter battery right to the rear of your vehicle. 8mm2, 8AWG twin-core wiring, to minimise the voltage drop. Comes pre-terminated with 8mm ring terminals on one end to suit all sizes of Kings lithium and AGM batteries, and an in-line maxi blade fuse holder with two 35A fuses.The other end is terminated with Anderson-style quick connect plugs.
• The Kings Quick-Connect to Cig Socket Adapter is perfect for adding an additional 12v cig-style socket to any Quick-Connect Anderson-style connector. It's perfect for adding to the Kings Battery Boxes and Compact Control Box, and gives you the ability to run a second cig-plug powered bit of camping gear, like an additional camp light kit to really brighten up your campsite! Or, grab the USB charger from your car and you've got extra ability to charge phones, speakers and tablets all at once.
• The Kings Quick-Connect to Cig Plug Adapter is perfect for setups where you have an available cig socket, but need a Quick-Connect Anderson-style plug - like running a 12v Adventure Oven, or the Kings Drawer or Upright Fridges without the need to hard-wire a quick-connect plug into your vehicle. 1 x adapter with a Quick-Connect Anderson-style connector on one end, and a 12v cig-socket style plug on the other
BATBLOCK25
Max. Battery Size 330 x 173 x 220 mm
Max. DCDC Charging Current 25A
MPPT Solar Input Range 10 - 32V
Compatible Battery Types Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Shunt - 500A rated
Input / Output 2x 50A Combined rating quick connect plugs (input/output), 120A rated M8 threaded terminals
Inputs 1x Quick connect solar input 1x triple quick connect alternator input
Outputs 1x 12V cig socket, 2x USB A, 1x USB QC, 1x USB C PD
Isolator Switch YES - with 200A fuse
Case Material Reinforced ABS
Weight 6.1kg
Dimensions 441 x 236 x 340 mm
6M SOLAR EXTENSION LEAD
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
25A WIRING KIT
Wire Length 6 Metres
Wire Gauge Twin Core 8AWG / 8mm2
Fuse Type / Rating Maxi Blade Fuse / 60A
Fitted Plug / Terminal Types Pre-fitted Anderson-style plug and terminals + 8mm ring terminals
Extra Terminals Included 8mm ring terminals x 2, Anderson style connectors x 2, Anderson style plastic housing x 2
Included Fuses 2 x 35A maxi blade fuses
Quick-Connect to Cigarette Socket Adapter
Connections Quick-Connect (50A Anderson-style) to 12v Female Cig Socket
Length 30cm
Quick-Connect to Cigarette Plug Adapter
• Connections Quick-Connect (50A Anderson-style) to 12v Male Cig Plug
•Length 30cm
•Internal Fuse 15A
