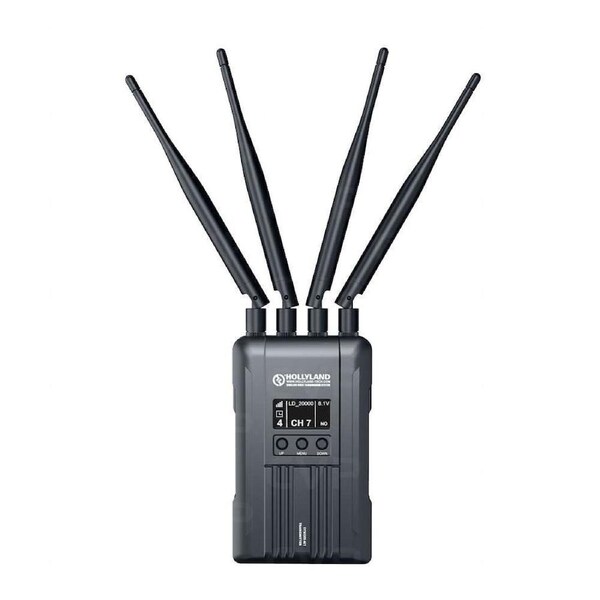

Hollyland Syscom Transimitter for 421S

Features:

• 1800ft Transmission Range
• The Lowest Achievable Latency without Interference is under 0.1s
• 5.1-5.9 GHz Band Width, Supports Frequency Configuration for Different Territories
• Supports 4 SDI Input and HDMI Input, 4SDI Output and HDMI Output
• 4 Transmitters Use the Same Wireless Channel with Strong Anti-Interference Ability
• Supports TALLY and RS485/RS422 Control
• Transmitter Supports 7-36V DC Wide Voltage Input
• Receiver Supports 18-36V DC Wide Voltage Input
• Stable & Reliable Industrial Metal Case
• With RJ45 Interface, Supports Network Pass Through between Transmitter and Receiver, and Achieves RTSP Pull and Push Streaming

Interface

• SDI Input (BNC Female)
• HDMI Input (Type A Female)
• 3.5mm TALLY Output
• Antenna Interface*4 (RP-SMA Male)
• DC Power Input
• USB Type-C
• LAN
• RS485/RS422

Input/Output Video Format

• HDMI: 480p60Hz, 576p50Hz, 720p50/60Hz, 1080p24/25/30/50/60Hz
• SDI: 720p50/60Hz, 1080i50/60Hz, 1080p24/25/30/50/60Hz


Bandwidth:

•  40MHz

Lowest Transmission Latency:

• <0.1s

Receiver Sensitivity:

• -90dBm

Transmission Power:

• Max 22dBm

Frequency:

• 5.1~5.9HGz

Power:

• 7~36V DC

Power Consumption:

• <12W

Weight:

• 431.5g (without antenna)

Dimensions:

• 3.46 x 1.18 x 5.66" (without antenna)
