The Shuttle DH810 is a 1.3L robust PC that harnesses the power of Intel® Core™ Ultra LGA1851 processors. With support of up to 96GB of DDR5-5600MHz RAM in dual-channel mode and integrated Intel® Graphics, DH810 ensures seamless multitasking and rapid data processing, making it ideal for commercial tasks and demanding AI workloads. The DH810 supports up to 8K resolution via HDMI, along with triple independent 4K display, delivering a stunning visual experience for Pro AV applications, including digital signage and entertainment.
● Core configuration: Up to 24 cores (8 Performance-cores and 16 Efficient-cores)
● Enhanced Graphics Performance: The integrated Intel® Graphics significantly enhance DH810's suitability for commercial applications.
● Maximum capacity of up to 96GB (48GB per slot)
● Fast data processing capabilities at 1.1V, improving power efficiency
● 1 x M.2 2280, M key slot for PCIe Gen 4x4 or SATA 6Gb
● 1 x M.2 2230, E key slot for PCIe Gen 3x1, USB2.0, Intel CNVi module or Wlan-M module
● BIOS and Utility Features:
Wake on LAN, Power-On After Power Failure, RTC Power-on, Watch Dog, and Auto Power on
● Reliable Performance:
Shuttle's exclusive heat pipe cooling technology ensures 24/7 stable operation in environments ranging from 0 to 50°C
● Flexible Mounting Methods:
Supports VESA mounting standards of 75x75 and 100x100, allowing easy installation on walls or behind displays, perfect for space-constrained environment
● Operation System Support:
Windows 11 and Linux
FORM FACTOR1.3L chassis
PROCESSORIntel® Core™ Ultra 200 series LGA1851 processors, TDP up to 65W.
CHIPSETIntel H810 Express chipset
MEMORY2 x DDR5 SODIMM slots,48GB per DIMM (Max 96GB)
DDR5 5600 MHz
VIDEO OUTPUT(1) HDMI 2.1 (TMDS)
(2) DP (Include 1 form USB 4.0 port)
Triple video outputs
4K playback (Dual channel memory recommended)
Integrated in CPU
AUDIORealtek ALC 888S High Definition Audio
ETHERNET(1) Intel 2.5GbE LAN
(1) Intel 1GbE LAN
Supports 10/100/1000 Mb/Sec.
Support wake ON LAN (WOL) feature
STORAGE INTERFACESATA 6.0Gb/s interface
NVMe interface
Support SATA RAID 0,1
ONBOARD CONNECTORS(1) 4pin fan connector
(1) VGA(For PVG01 use)
(1) 1x4 pin USB header(For WWN03 use)
(1) SATA connector w/power
(1) Front audio header
(1) Auto power on header
(1) RS232 voltage switch

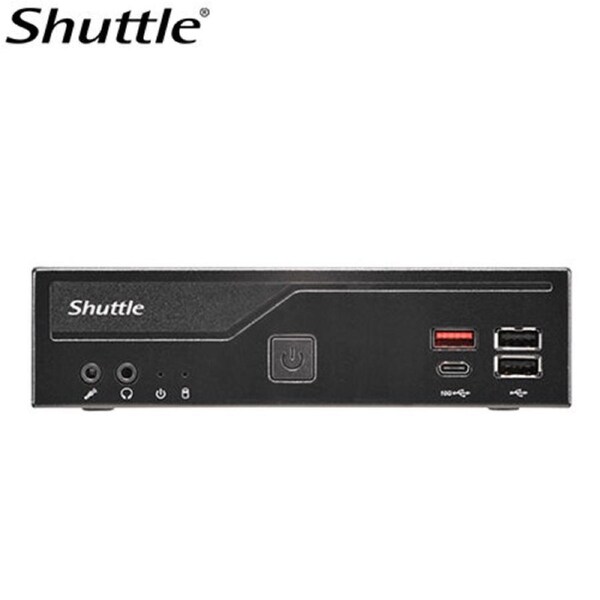

FRONT PANEL(2) USB 3.2 Gen2 ports (Include 1 Type-C)
(2) USB 2.0
(1) Microphone-In
(1) Line-Out
(1) Power-On button
(1) Power LED
(1) HDD LED
BACK PANEL(2) RJ45 LAN port w/LED (2.5G
(1) HDMI port
(1) Display port
(2) USB 3.2 Gen1 ports
(2) USB 3.2 Gen2 ports
(1) USB 4.0 (20G, Type-C, with DP)
(1) RS232
(1) RS232/RS422/RS485
(1) External 4pin header
(1) DC-in
(1) Kensington lock
DRIVE BAYS(1) 2.5' HDD / SSD bay
DIMENSIONS190(L) x 165(W) x 43(H) mm
POWER120W Power Adapter
Input:100- 240V AC
19V 6.32A
ACCESSORIESXPC Multilanguage Quick User Guide
XPC DVD Driver
VESA mount
VESA Screw pack
Power cord
Thermal Grease
HDD Screw pack
120W adapter
EXPANSION SLOT(1) M.2 2280 Type M key socket
(1) M.2 2230 Type E key socket
OS SUPPORTWindows 11 64 bit O.S
Linux
REMARKRS232 ports support 0/5/12V output. Voltage setting please refer to Quick Guide.
NET WEIGHTNW :1.32 (kg)
OPERATING TEMPERATURE0℃~50℃
