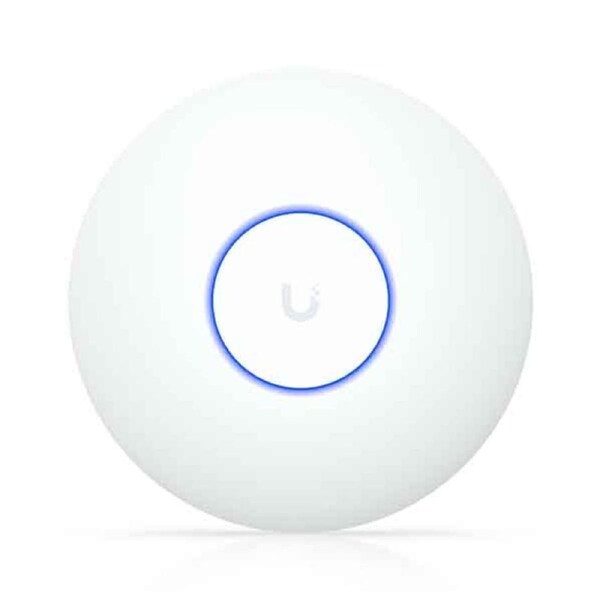

Ubiquiti U7 Lite Compact Ceiling Mounted Wifi 7 Ap 4 Spatial Streams

UBIQUITI U7 LITE,COMPACT, CEILING-MOUNTED WIFI 7 AP, 4 SPATIAL STREAMS,2.5 GBE UPLINK,115 M2 COVERAGE,200+ CONNECTED DEVICES,POWER VIA POE

U7 Lite
Compact, ceiling-mounted WiFi 7 AP with 4 spatial streams and 2.5 GbE uplink.

WiFi 7
4 spatial streams
115 m2 (1,250 ft2) coverage
200+ connected devices
Powered using PoE
2.5 GbE uplink

Designed for Massive Scale
These latest U7 APs are built for large-scale deployments, all powered by Ubiquti's continuously evolving UniFi software engine. Ubiquiti are committed to bringing you the best in network management and performance, and these new devices are just the beginning.

Wi-Fi 7 Performance
The U7 Lite is an ultra-compact, highly capable WiFi 7 access point. This powerhouse comes in at an incredible price point, making top-tier connectivity more accessible than ever before.

Advanced Features
Just like Ubiquiti's other WiFi 7 access points, the U7 Lite is fully equipped with advanced WiFi 7 features like preamble puncturing to avoid 5 GHz interference and MLO for ultra low client latency.

Optimized Coverage
The U7 Lite is designed to support a high number of simultaneous client connections without compromising performance. Its advanced Wi-Fi 7 technology ensures wider coverage and stronger signal stability, providing seamless connectivity across homes, offices, and small businesses.

SPECIFICATIONS

WiFi Standard: WiFi 7
Spatial Streams: 4
Coverage Area: 115 m2 (1,250 ft2)
Max. Client Count; 200+
Uplink: 2.5 GbE
Mounting: Ceiling, Wall (Lite Mount Included)
Power Method: PoE

Performance
MIMO: 5 GHz: 2 x 2 (DL/UL MU-MIMO), 2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate: 5 GHz: 4.3 Gbps (BW240), 2.4 GHz: 688 Mbps (BW40)
Antenna Gain: 5 GHz: 5 dBi, 2.4 GHz: 4 dBi
Max. TX Power: 5 GHz: 24 dBm, 2.4 GHz: 23 dBm
Max. BSSIDs: 8 per Radio

Supported Data Rates
802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

FEATURES

Wireless Meshing: Yes
Band Steering: Yes
802.11v BSS Transition Management: Yes
802.11r Fast Roaming: Yes
802.11k Radio Resource Management (RRM): Yes
Advanced Radio Management: Yes
Passpoint (Hotspot 2.0): Yes

Captive Hotspot Portal
Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK): Yes
WiFi Speed Limiting: Yes
Client Device Isolation: Yes
WiFi Schedules: Yes
RADIUS over TLS (RadSec): Yes
Dynamic RADIUS-assigned VLAN: Yes

Hardware
Max. Power Consumption: 13W
Supported Voltage Range: 42.5-57V DC
Networking Interface: (1) 2.5 GbE RJ45 port
Weight: 313 g (11 oz)
Management: Ethernet
Enclosure Material: UV-stabilized polycarbonate
Mount Material: UV-stabilized polycarbonate, galvanized steel (SGCC)
LEDs: System: White/Blue
Channel Bandwidth: HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)
Certifications: CE, FCC, IC
NDAA Compliant: Yes
Ambient Operating Temperature: -30 to 40o C (-22 to 104o F)
Ambient Operating Humidity: 5 to 95% noncondensing

Software
Application Requirements: UniFi Network
Version 9.0.114 and later: UniFi OS: iOS(TM) Version 10.20.2 and later, Android(TM) Version 10.21.7 and later

PACKAGE CONTENTS

1 x Ubiquiti U7 Lite Compact Ceiling Mounted Wifi 7 Ap 4 Spatial Streams
