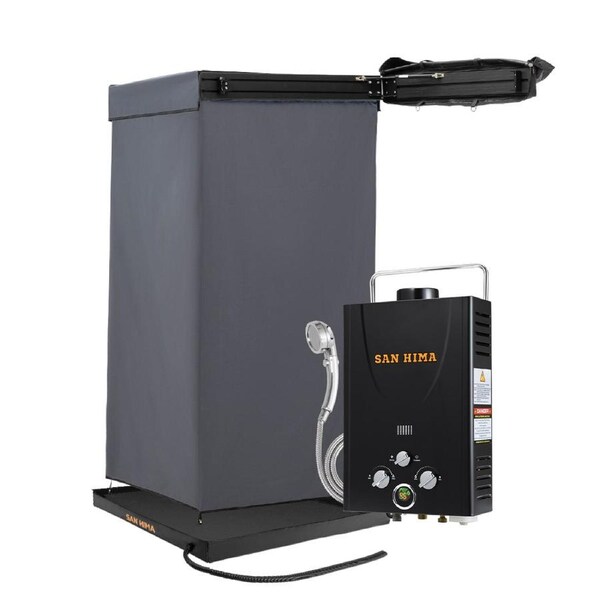

Outdoors, every little detail counts. Traditional shower awnings often do just that-making it harder to access what you need when you need it. That's where the San Hima shower awning with its 90° swing arm comes in-it gives you an unblocked path, everything's right where you need it. First off, the swing arm lets you access your gear without having to awkwardly maneuver around the setup, especially when you've got a bunch of stuff. The roof rolls back for fresh air, but when privacy's a priority-whether you're showering, changing, or using the toilet-the roof can be rolled up for full coverage. Made with 420D Oxford fabric and 280GT polyester-cotton, this shower tent is water-resistant (5,000mm) and offers UPF 50+ protection. The silver lining blocks any silhouettes, while the built-in LED light makes sure you're never in the dark. With pockets for towels, clothes, and shower zippers with Velcro, everything's within arm's reach, making showering hassle-free.
FEATURES
- 1.0° Swing Arm: Swing it for full access to your vehicle's doors and canopy, giving you unblocked access to all your gear without anything getting in the way.
- Shower Awning Roof: The optional roof on our San Hima shower awning provides extra privacy, and can be rolled back for fresh air or a clear view of the sky.
- Set Up in 30s: Setup's a breeze-just swing the arm, unzip, unfold, peg it down, and with reinforced hinges and a self-locking mechanism, it's quicker than you think.
- Easy Installation: It easily mounts to your 4x4 roof rack or camper trailer, with self-locking reinforced hinges for solid stability during setup and takedown.
- Total Privacy: The silver lining ensures you're completely hidden-whether you're showering, changing, or on the toilet, it blocks any chance of prying eyes.
- No Sagging: Four tie-down points with pegs keep the shower awning taut, so you can hang towels or store toiletries without any drooping.
- Hassle-Free Storage: When you're done, just store the awning in its UV-resistant and waterproof 1,000 GSM PVC travel cover for easy, organized storage.
- Built Tough: Made of 420D Oxford fabric and 280GT polyester-cotton for 5,000mm waterproofing, UPF 50+, and aluminum alloy backing for extra strength.
- LED Light Inside: Enjoy a well-lit shower with the built-in LED strip, offering 867 lumens of bright, reliable lighting whenever you need it.
- User-Friendly: Stay organized with pockets for your essentials, shower zippers with Velcro for hanging your shower, and zippers on both sides for easy access.
SPECIFICATIONS
Shower Tent
Material:420D Oxford Fabric & 280GT Polyester-Cotton
Water Column:5,000mm
UV ProtectionUPF 50+
Brackets Material:Powder Coated Steel
Swing Arm:Carbon Structural Steel
Folded Dimension:102 x 16 x 14cm(LxHxW)
Unfolded Dimension:98.5 x 98.5 x 207cm(LxHxW)
Package Size:106 x 17 x 17cm(LxHxW)
Package Weight:15.7Kg
Travel Cover
Material:1,000 GSM PVC
Water Column:8000mm
UV Resistant:Yes
LED Light
Rated Voltage:5V
Rated Power:10W
Lumens:867
Connector:USB-A
Gas Water Heater
Gas Input Connection:G
Water Input Connection:G
Water Output Connection:G
Package Size:64 x 35.5 x 18cm(LxWxH)
Package Weight:7.8KG
Heat Exchanger
IAPMO:GMK10498
Injector Size (mm) :0.61
Total Nominal Gas Consumption (MJ/h):28
Gas Pressure (kPa):2.8
Min Water Pressure (MPa):0.3
Max Water Pressure (MPa):1.0
Power (kw):7.7
Water Flow Rate (max) (l/m):8
Pump
Power Supply (V DC):12
Power Demand (Amps):3.5 Max
Pump Type:Diaphragm Pump
Pressure (PSI):35
Flow Rate (l/m):4.3
Shower Hose Head
Hose Length (cm):150
Max. Water Pressure (kPa):500
Flow Restriction:On / Off Switch
Flow Variations:3
Gas Hose and Regulator
Australian Standard:AS/NZS 1869 (Hose), AS 4621 (Regulator)
AGA Certificate No.:7787 (Hose), 8498 (Regulator)
Gas Type:LPG
Connection Type:Type 21 (POL)
Inlet Pressure (kPa):250 ~ 1750
Outlet Pressure (kPa):2.8
Flow Rate (kg/h):2.0
Temperature Limit (C):-20 ~ 60
Mounting Preferences:Horizontal with conical face up
Camping Shower Base
Material:450gsm PU-coated polyester
Hose length:100cm
Folded Dimensions:106 x 17 x 5cm(LxWxH)
Package Size:105.5 x 12 x 6cm(LxWxH)
Package Weight:2kg
PACKAGE INCLUDES
1 x SAN HIMA Shower Awning with Swing Arm
1 x SAN HIMA Gas Hot Water Heater
1 x SAN HIMA Camping Shower Base
2 x L-shaped Brackets & 1 x Charging Cable For Shower Awning
Set of Mounting Kit For Shower Awning
1 x Shower Head & 1 x Shower Hose & 1 x Shower Head Holder & 1 x Gas Regulator with Gas Hose For Gas Hot Water Heater
1 x Portable 12V Water Pump & 1 x Cable with Cig Socket & 1 x Cable with Alligator Clips & 1 x Water Hose For Gas Hot Water Heater
1 x Thread Seal Tape & 3 Pairs of Quick Connectors & 1 x Inlet Filter & 1 x Installation Kit For Gas Hot Water Heate
1 x Hose & 1 x Carry Bag For Shower Base
2 x User Manuals
WARRANTY
1 Year Warranty For Shower Tent & Tent Base
2 Years Warranty For Gas Water Heater
