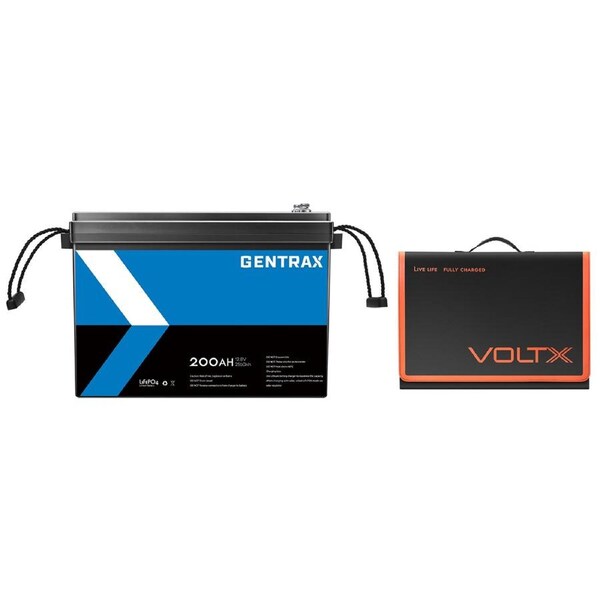

GENTRAX 12V 200Ah Lithium Battery + 200W Solar Panel

• Brand: GENTRAX
• Nominal Voltage: 12.8V
• Nominal Capacity: 200Ah
• Rated Energy: 2560Wh
• Approx Life Cycles: ≥3000
• Battery Manage System: 100A
• Standard Charging Current: 50A
• Max. Charging Current: 100A
• Standard Discharge Current: 50A
• Max. Continuous Discharge Current: 100A
• Max. Discharge Current 5 sec: 300A

• Charger: 14.4V 50A
• Charging Voltage: 13.6-13.8V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection:14.6V
• Overcharge Recovery:14.2V
• Overdischarge Protection: 10V
• Overdischarge Recovery: 10.6V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -5°C to 35°C
• Charge Method: CC/CV
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Standard
• Battery Shape: General
• Case Material: ABS Plastic
• Certifications: CE/UN38.3
• Protection Class: IP65
• Warranty in Years: 3
• Bolt Type: M8
• Bolt Material: Iron nickel-plated
• Cell Grouping: 4S2P
• Parallel Connection: Max 4
• Series Connection: No

• Product Size: L367 x W189 x H245mm
• Package Size: L420 x W242 x H303mm
• Bolt Terminal Size: Hexagon x 14mm
• Bolt Terminal Perimeter: 25.12mm
• Net Weight: 17.8kg
• Gross Weight: 19.5kg

• 1x 200Ah Lithium Battery
• 2x Terminal Bolts M8*14
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Brand: VoltX
• Max Power: 200W
• Max Power Voltage (Vmp): 18V
• Max Power Current (lmp): 11.11A
• Open-Circuit Voltage (Voc): 21.96V
• Short-Circuit Current (Isc): 11.77A
• Max System Voltage: 500V
• Max Series Fuse Rating: 15A
• Cell Efficiency: 23.5%
• Power Tolerance: 0-3%
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -20°C-65°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.265%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Foldable
• Solar Cell: Monocrystalline Grade A
• Cell Tech: ETFE
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 1.5m Cable With MC4 Connector
• Tie Down Points: Yes, 2 Hanging Ropes
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 1 Year

• Folded Dimensions: L550xW405xH55mm
• Open Dimensions: L1090xW1585xH12mm
• Package Dimensions: L570xW425xH100mm
• Net Weight: 5.7kg
• Gross Weight: 6.5kg

• 1x VoltX 200W Foldable Solar Panel
• 1x Junction Box (Contain 2x USB Port & 1x USB-C Port)
• 1x 1.5m Cable With MC4 Connector
• 1x User Manual
