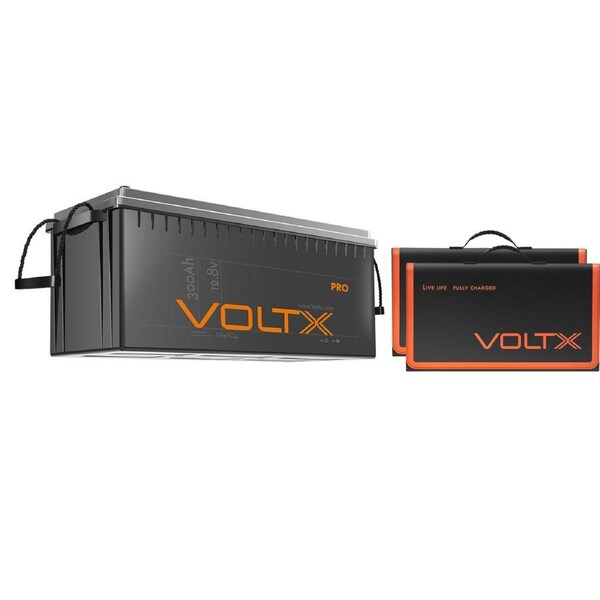

VoltX 12V Lithium Battery 300Ah + 200W Solar Panel

• Brand: VoltX
• Nominal Voltage: 12.8V
• Nominal Capacity: 300Ah
• Rated Energy: 3840Wh
• Approx Life Cycles: 4000
• Battery Manage System: 300A
• Standard Charging Current: 100A
• Max. Charging Current: 300A
• Standard Discharge Current: 200A
• Max. Continuous Discharge Current: 300A
• Max. Discharge Current 5 sec: 600A

• Charger: 14.6V 100A
• Charging Voltage: 14.6V
• Absorption Voltage: 14.4V
• Float Voltage: 13.8V
• Overcharge Protection: 14.4V
• Overcharge Recovery: 14V
• Overdischarge Protection: 10.8V
• Overdischarge Recovery: 11.2V

• Charge Temperature : 0°C to 45°C
• Discharge Temperature : -20°C to 60°C
• Storage Temperature: -10°C to 50°C
• Charge Method: CC/CV
• Battery Cells: Prismatic
• Cell Grouping: 4S2P
• Parallel Connection: Max 6
• Series Connection: Max 6
• Case Material: ABS Plastic
• Battery Type: LiFePO4 Lithium Battery
• Battery Model: Pro 300Ah
• Certifications: IEC 62619
• Warranty in Years: 5

• Product Size: L520 x W269 x H220mm
• Package Size: L585 x W340x H305mm
• Net Weight: 28kg
• Gross Weight: 29.2kg

• 1x VoltX Pro 300Ah Lithium Battery
• 2x Terminal Bolts M8*16
• 2x Insulating Covers
• 2x Screw Spring Washer
• 4x Screw Washers
• 1x User Manual

• Brand: VoltX
• Max Power: 100W
• Max Power Voltage (Vmp): 18V
• Max Power Current (lmp): 5.56A
• Open-Circuit Voltage (Voc): 21.96V
• Short-Circuit Current (Isc): 5.83A
• Max System Voltage: 500V
• Max Series Fuse Rating: 15A
• Cell Efficiency: 23.5%
• Power Tolerance: 0-3%
• Standard Test Conditions: E=1000W/m² AM=1.5, TC=25℃
• Working Temperature: -20°C-65°C
• Temperature Coefficients of Pmax: -0.34%℃
• Temperature Coefficients of Voc: -0.265%℃
• Temperature Coefficients of lsc: +0.05%℃
• Nominal Operating Cell Temperature (NOCT): 45±2°C
• Type: Foldable
• Solar Cell: Monocrystalline Grade A
• Cell Tech: ETFE
• Panel Leads (Pair-AWG): 2.5mm²
• Solar Connectors: Junction Box + 1.5m Cable With MC4 Connector
• Tie Down Points: Yes, 2 Hanging Ropes
• IP Rating: IP65
• Certifications: CE, ISO
• Warranty: 1 Year

• Folded Dimensions: L540xW310xH40mm
• Open Dimensions: L1515xW540xH12mm
• Package Dimensions: L560xW330xH90mm
• Net Weight: 3.1kg
• Gross Weight: 3.6kg

• 1x VoltX 100W Foldable Solar Panel
• 1x Junction Box (Contain 2x USB Port & 1x USB-C Port)
• 1x 1.5m Cable With MC4 Connector
• 1x User Manual

• Please allow 1-12 business days for delivery

• Note: No delivery to PO Box addresses (please provide a residential or business address at checkout)

• We ship across Australia, including major cities like: Sydney, Melbourne, Perth, Brisbane, Adelaide, Canberra, Newcastle and the Gold Coast

• We're dedicated to getting your purchase to you as swiftly and smoothly as possible. Please note the following details about our shipping process:

1. Swift Dispatch: Orders are dispatched promptly, with our aim to ship all purchases within 48 hours. This quick, automated turnaround means that alterations are not always possible.

2. Physical Address Required: We kindly request you provide a physical address, as we are unable to ship to PO Box or Parcel Locker addresses.

3. Delivery Timeframes: Our standard delivery typically occurs within 3-8 business days. However, for rural areas or during unforeseen delays (like adverse weather events or peak periods), please anticipate a delivery timeframe of up to 12 business days.

4. Multiple Deliveries: If your order contains multiple items, they may arrive separately. The remaining items usually arrive within 2-5 business days from the receipt of the first item. You can track each item's progress on the courier's website.

5. Delivery Coordination: If you have specific delivery instructions or encounter any issues, please reach out to us and our customer service team will do our best to help. We look forward to providing you with a seamless shopping experience.

Warranty Policy

Ozzie Energy offers a 12 month warranty on all products from the date of purchase, unless otherwise stated. Ozzie Energy warrants its products against defects in materials and/or workmanship. If a defect arises and a valid claim is received by Ozzie Energy, we can offer solve solutions: repair the products, or provide replacement parts, or arrange a full replacement. The warranty period for commercial use is 3 months.

Naturally the warranty cover does not extend to damage caused by normal wear and tear, accidents, misuse, lack of maintenance, neglect, natural disaster, or other external causes; to damage caused by operating the equipment in a manner outside that described in the instructions. The warranty is considered void if the item has been modified, altered or tampered with by a person (or persons) not authorised by us to provide service (not including standard periodic maintenance).

We do our best to package the products to avoid mishandled or damaged in transit. However, should your item not function on arrival you are entitled to return the product to us for a full refund, repair, or replacement at your request. The item needs to be returned and inspected prior to the resolution being provided.

60 Day Returns Policy

Here at Ozzie Energy, we take customer satisfaction seriously and want to ensure that every customer is 100% satisfied with their purchase.

If for any reason you change your mind about any of the products you purchase from us, simply contact us in writing within 60 days to be guided through getting a refund. Returned items must be in their original packaging with all accessories, in original and re-saleable condition. The original shipping cost plus a 30% restocking fee will be deducted.

If the item has sustained damage in transit, or is not returned as noted above, a revised refund amount may be required.
