P&P 2-Stroke 100cc Motorized Bicycle Engine Kit

Specifications:

*Product: 100CC 2-Stroke Engine Motor Kit

*Engine Type:100CC 2-stroke Single cylinder,air-cooling,

*Rated Power: 2.5Kw/5000r/min(3 horsepower/5000r/min)

*Max. Power Rotary Speed: 3.5KW/5000r/min.(6-6.5 horsepower)

*Maximum Speed: 55-60KM/H.(depending on bike size, weight & road Conditions)

*Lgnition Mode: Capacitor discharge, electronic igniter.

*Transmission Ratio: 16.4:1.

*Compression Ratio: 7:1.

*Type of Sparking Plug: 4144.

*Lubrication Oil: Stroke engine oil.

*Oil capacity: 2L.

*Fuel Consumption: 2.5-3.5L/100Km

*Type of Clutch: Manual dry clutch.

*Cooling mode: Natural air cooling.

*Needel rollers on both conrod ends.

*RS202 Internal Bearing,standard chain 415.

*Teardrop gas tank,agneto with kill lever.

*With push clutch lever,brake Lever with gear changer.

*Fuel: Unleaded 91 PETROL Mixed with 2 stroke oil

*Suitable for: 26" or 28" Bicycle

??This kit will allow you to turn your bicycle into a gasoline powered??

Features:

*??2-stroke 100CC Engine Kit??The 100CC bicycle motor kit includes all the parts and accessories needed to convert a regular bike into a gasoline-powered motorcycle, including engine, fuel tank, silencer, etc.

*??Fuel-Efficiente??100CC gas motor bicycle kit. Perfect for upgrading from a regular bike to an electric bike, you can enjoy a faster ride. Low fuel consumption, 150 miles per gallon, very energy efficient and economical. Max.Load capacity:180kg??396lb??,Top Speed: 50km/h??30 mi/h)

*??Complete Engine Kit??This gas engine bike kit suitable for most 26" /28"bikes, such as mountain bikes, road bikes, cruisers, choppers. Engine requires 8oz 2 Stroke oil per gallon of gas during Break In Period.

*??Condensate and Compression??The air pressure regulator filter removes solid particles and condensate moisture in compressed air;

*??Powerful Engine??Heavy duty metal engine body for added durability. Single Cylinder, Air-Cooling, Gasoline Engin.Engine kit is perfect to upgrade the regular bike to a motorized bike.The speed can reach up to 50km/h;

*??Easy to Install??Motorized bike kit 100CC. Comes with all needed accessories for easy installation. Equipped with detailed instructions, this instruction contains every detail of the assembly steps. You just need to follow the installation manual to complete the installation easily.

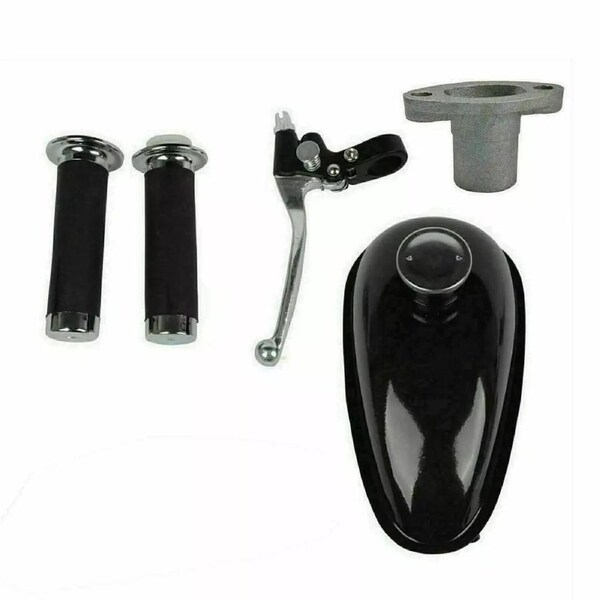

Package included:
1 × 2 Stroke Engine
1 × Fuel Tank
1 × Fuel Tank Cap
1 × 44 Tooth Chain
1 × Exhaust Pipe
1 × Clutch Cable And Throttle Cable
1 × Kill Switch
1 × Clutch Lever
1 × CDI
1 × Carburetor
1 × Chain Guard
1 × Chain
1 × U Brackets And Bolts
1 × Chain Tensioner
1 × Exhaust Muffler Fixer
1 × Throttle Handle
1 × Rubber Sheet
1 × Fixed lron
1 × Spark Plug Tool
1 × Fuel filter
1 × Fuel Valve
1 × Spring
1 × Spark Plug
1 × Fuelline
1 × Withdrawal Tool
1 × Install Screw

TIPS:

*Not suitable for bikes with front frame wider than 50mm??

*Always wear a suitable helmet when riding. Not suggested for night use. If unavoidable, please make sure adequate lighting system is operating at night??

*Bicycle installed with 100CC engine kit is not legal to be used on road /bicycle path in Victoria - please check with local authority for other states. It is recommended for off-road or private property use only.

Warning:

1.Due to manual measurement, please allow 1-3cm error.

2.Due to the difference between different monitors,and shooting problems such as light, there will be chromatic aberration, pls make sure you do not mind before you bid.

Installation Manual:

1. When installing the chain, chain wheel and sprocket should be kept in the same straight line.

2. After Carburetor and Throttle Cable have been installed??Turn the Throttle to check whether carburetor is working correctly.

3. Installing Clutch cable: hold the clutch handle then spin the rear wheel of bicycle and check if it spins normally. Release the clutch handle, the wheel should stop spinning.

4. Adjusting the Chain tightness: Tighten up the chain, apply force to press the chain downward, the sagging down height within 0.5~1cm is considered ideal.

5. Spark plug, muffler, carburetor installation: Tighten all bolts

6. Check all wires are connected properly.
