BLUSTREAM IP Multicast Control Module for TC/IP,RS-232- CM100

Blustream IP Multicast Control Module Model: CM100 IP Multicast Control module for TCP/IP, RS-232 and IR control of Blustream Multicast system Our UHD Multicast distribution platform allows distribution of HDMI video over a 1GB Network switch. The CM100 Control Module allows simple third party control of the Multicast system using TCP/IP, RS-232 or IR. The system wizard PC configuration program and pre-built Blustream product drivers simplify product installation and negate theneed for an understanding of complex network infrastructures. Features Simple system configuration using Blustream Wizard PC program 2x RJ45 LAN connections to bridge existing network to Multicast video distribution network, resulting in: Better system performance as network traffic is separated No advanced network setup required Independently configurable IP address per LAN connection Allows simplified TCP/IP control of Multicast system RS-232 integration for control of Multicast system IR integration for control of Multicast system PoE (Power over Ethernet) to power Blustream product from PoE switch Local 5V power supply (optional) should Ethernet switch not support PoE 3rd Party drivers available for all major home controlbrands Box Contents 1 x CM100 1 x IR control cable - 3.5mm-3.5mm cable 1 x Serial 3-pin phoenix connector

Orders are usually sent out within two business days, and you can expect to receive them within 5-10 business days (subject to Location)

Please note:

No delivery to PO Box addresses or Parcel Lockers (please provide residential or business address at checkout)

All our products are backed by a manufacturer’s warranty.

For item specific terms and conditions, kindly refer to the details provided within each listing

RETURNS

• If for any reason you are not happy with your product, you may return it within 30 days of receipt for a full refund of the item.

• Please note that shipping and handling costs are non-refundable, and that you are responsible for the return shipping charges.

• Returns will only be accepted for items that have not been used and are in their original packaging.

• We recommend return packages are sent via registered post so that it can be traced. We are not liable for return items that have been lost or damaged in transit.

FAULTY PRODUCTS

• If an item is received faulty, we will gladly replace or refund it you have contacted us within a reasonable time period.

• Please contact us with the details of the fault, including photos where relevant.

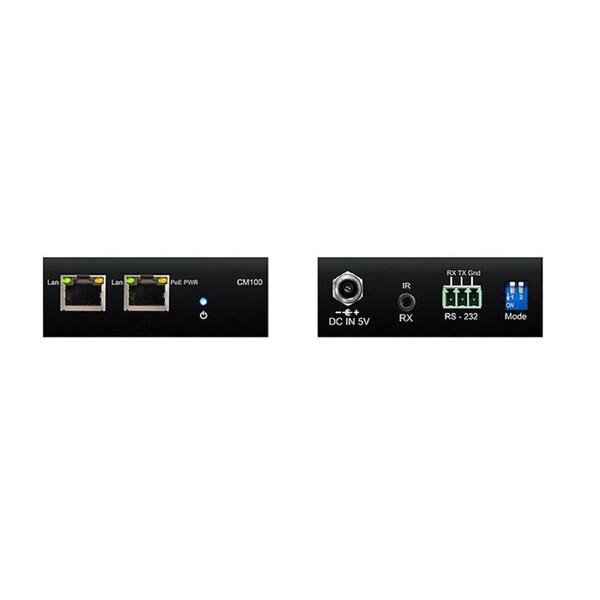

Ethernet port: 2x LAN RJ45 connector (1x PoE support) RS-232 serial port: 1x 3-Pin Phoenix connector IR Input ports: 1x 3.5mm stereo jack Dimensions (W x D x H ): 89mm x 85mm x 23mm Shipping Weight (Kit): 0.4kg Operating Temperature: 32F to 104F (0C to 40C) Storage Temperature : -4F to 140F (-20Cto 60C)
