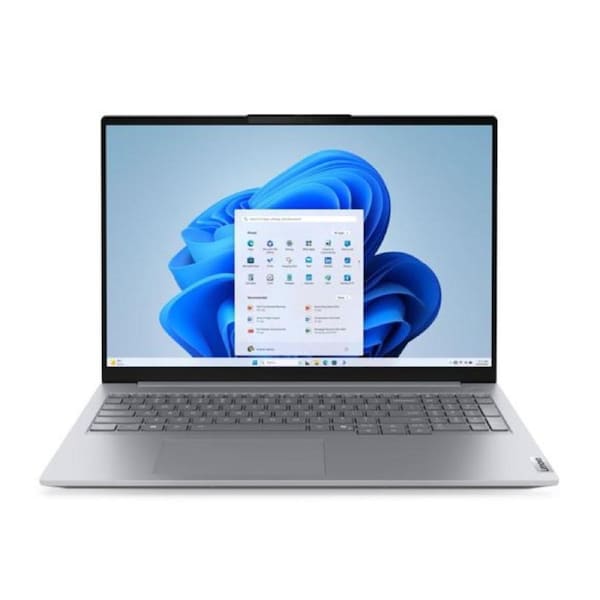

LENOVO ThinkBook 16 G8 16' WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel GPU AI PC NPU 12 TOPS Thunderbolt Fingerprint 1yr OS 1.7kg ~i5
LENOVO ThinkBook 16 G8 16" WUXGA Intel U5-225U 16GB DDR5 512GB SSD WIN 11 PRO Intel Graphics AI PC NPU 12 TOPS 1yr OS 1.7kg
PERFORMANCE
Processor Intel(R) Core Ultra 5 225U, 12C (2P + 8E + 2LPE) / 14T, Max Turbo up to 4.8GHz, 12MB
AI PC Category AI PC
NPU Integrated Intel(R) AI Boost, up to 12 TOPS
Graphics Integrated Intel(R) Graphics
Chipset Intel(R) SoC Platform
Memory 2x 8GB SO-DIMM DDR5-5600
Memory Slots Two DDR5 SO-DIMM slots, dual-channel capable
Max Memory Up to 64GB DDR5-5600
Storage 512GB SSD M.2 2242 PCIe(R) 4.0x4 NVMe(R)
Max Storage Support Up to two drives, 2x M.2 SSD * M.2 2280 SSD up to 2TB each
Storage Slot Two M.2 2280 PCIe(R) 4.0 x4 slots
Card Reader SD Card Reader
Audio Chip High Definition (HD) Audio, Realtek(R) ALC3287 codec
Speakers Stereo speakers, 2W x2, Dolby Audio(TM)
Camera FHD 1080p + IR Hybrid with Privacy Shutter
Microphone 2x, Array
Battery 45Wh
Power Adapter 65W USB-C(R) (3-pin)
Special Features Modern Standby
DESIGN
Display 16" WUXGA (1920x1200) IPS 300nits Anti-glare, 45% NTSC, 60Hz
Touchscreen None
Color Calibration None
Keyboard Backlit, English
Touchpad Buttonless Mylar(R) surface multi-touch touchpad, supports Precision TouchPad (PTP), 75 x 120 mm (2.95 x 4.72 inches)
Case Color Arctic Grey
Surface Treatment Anodizing Sandblasting (Top), Texture (Bottom)
Case Material Aluminium (Top), PC-ABS (Bottom)
Pen Pen Not Supported
Dimensions (WxDxH) 356 x 253.5 x 17.5 mm (14.01 x 9.98 x 0.69 inches)
Weight Starting at 1.7 kg (3.75 lbs)
SOFTWARE
Operating System Windows(R) 11 Pro, English (US) / English (UK)
Bundled Software Office Trial
CONNECTIVITY
WLAN + Bluetooth Wi-Fi(R) 6E, 802.11ax 2x2 + BT5.3
WWAN Non-WWAN
Ethernet 100/1000M (RJ-45)
Standard Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1)
1x USB-A (USB 5Gbps / USB 3.2 Gen 1), Always On
1x USB-C(R) (USB 10Gbps / USB 3.2 Gen 2), with USB PD 3.0 and DisplayPort(TM) 1.4
1x USB-C(R) (Thunderbolt(TM) 4 / USB4(R) 40Gbps), with USB PD 3.0 and DisplayPort(TM) 2.1
1x HDMI(R) 2.1, up to 4K/60Hz
1x Headphone / microphone combo jack (3.5mm)
1x Ethernet (RJ-45)
1x SD card reader
Docking Various docking solutions supported via Thunderbolt(TM) or USB-C(R). For more compatible docking solutions, please visit Docking for ThinkBook(R) 16 G8 IAL
SECURITY & PRIVACY
Security Chip Firmware TPM 2.0 Enabled
Fingerprint Reader Touch Style, Match-on-Chip, Integrated in Power Button
Physical Locks Kensington(R) Nano Security Slot, 2.5 x 6 mm
Other Security Camera privacy shutter
IR camera for Windows(R) Hello (facial recognition)
MANAGEABILITY
System Management Non-vPro(R)
SERVICE
Base Warranty 1-year, Courier or Carry-in
Included Upgrade 1Y Onsite upgrade from 1Y Courier/Carry-in
ACCESSORIES
Bundled Accessories None
CERTIFICATIONS
Green Certifications ENERGY STAR(R) 9.0
EPEAT(TM) Gold Registered
ErP Lot 6/26
RoHS compliant
TCO Certified 10.0
Other Certifications TUV Rheinland(R) Low Blue Light (Software Solution)
Mil-Spec Test MIL-STD-810H military test passed
