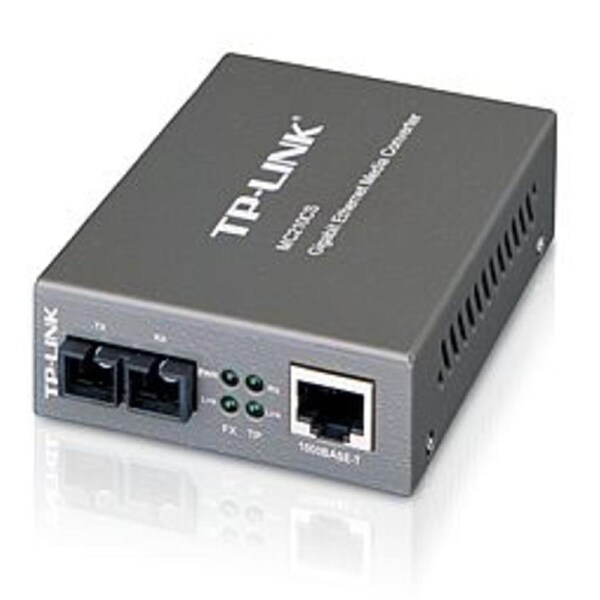

TP-Link MC210CS 1000Mbps RJ45 to 1000Mbps single-mode SC fiber Converter, Full-duplex, up to 15Km, switching power adapter, chassis TL-MC1400 rack-mou

TP-Link MC210CS Gigabit Single-Mode Media Converter Extends fiber distance up to 15km

Works at 1000Mbps in Full-Duplex mode for both TX port and FX port

Supports auto MDI/MDIX for TX port

Provides switch configuration of Force /Auto transfer mode for FX port.

Extends fiber distance up to 15km

Easy-to-view LED indicators provide status to monitor network activity easily

External power supply

What This Product Does

The MC210CS is a media converter designed to convert 1000BASE-LX/LH fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-LX/LH standards, the MC210CS is designed for use with single-mode fiber cable utilizing the SC-Type connector. The MC210CS supports longwave (LX) laser specification at a full wire speed forwarding rate. It works at 1310nm on both transmitting and receiving data.

Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK's 19''system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC210CS will transmit at extended fiber optic distances utilizing single-mode fiber up to 15 kilometers.

MEDIA CONVERTER & MODULE

Standards and ProtocolsIEEE 802.3ab, IEEE 802.3z, IEEE 802.3x

Basic FunctionFull Duplex Flow Control (IEEE 802.3x)

Extends fiber distance up to 15km

Ports1 1000M SC/UPC port

1 1000M RJ45 port (Auto MDI/MDIX)

Wave Length1310nm

Network Media 1000BASE-FXSingle-mode Fiber

Network Media 1000BASE-TUTP category 5, 5e cable (maximum 100m)

EIA/TIA-568 100 ohms STP (maximum 100m)

LED IndicatorsPWR, LINK, RX

Dimensions (W*D*H)3.7*2.9*1.1 in. (94.5*73.0*27.0 mm)

Power SupplyExternal Power Adapter

Max Power Consumption5.5W

Safety & EmissionFCC, CE, RoHS

EnvironmentOperating Temperature: 0C~40C (32F~104F)

Storage Temperature: -40C~70C (-40F~158F)

Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
