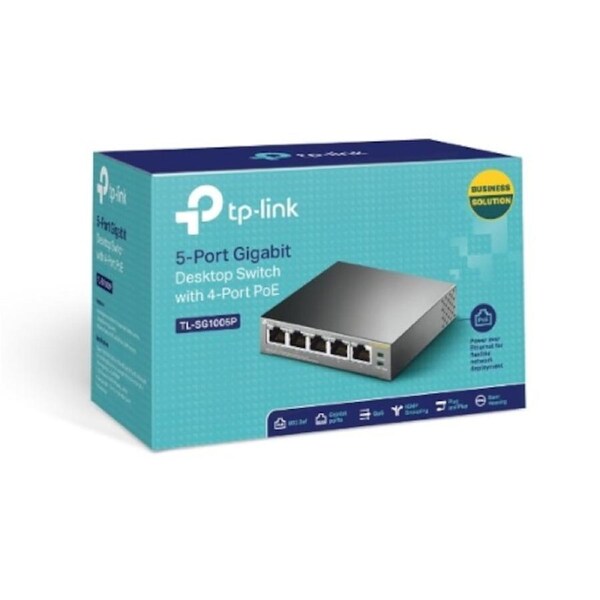

TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE, 5 Gigabit RJ45 ports including 4 PoE ports, 56W PoE Power supply, steel case
TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch with 4-Port PoE 56W
5 10/100/1000Mbps RJ45 ports
With four PoE ports, transfers data and power on one single cable
Working with IEEE 802.3af compliant PDs, expands home and office network
802.1p/DSCP QoS enable smooth latency-sensitive traffic
Supports PoE Power up to 15.4W for each PoE port
Supports PoE Power up to 56W for all PoE ports
Requires no configuration and installation
HARDWARE FEATURES
Interface 5x 10/100/1000Mbps RJ45 Ports
- AUTO Negotiation
- AUTO MDI/MDIX
Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
- 1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
- EIA/TIA-568 100 ohms STP (maximum 100m)
Fan QuantityFanless
External Power SupplyExternal Power Adapter (Output: 53.5 VDC / 1.31 A)
Packet Forwarding Rate7.44 Mpps
PoE Ports (RJ45) Standard: 802.3 af/at compliant
- PoE Ports: Ports 1 - 4
- Power Supply: 65 W
Mac Address Table2K
Jumbo Frame16 KB
Switching Capacity10 Gbps
Dimensions ( W x D x H )3.9x3.9x1.0 in (99.8x98x25 mm)
Max Power Consumption 4.29 W (220/50 Hz. no PD connected)
- 74.24 W (220/50 Hz. with 65 W PD connected)
Max Heat Dissipation 14.63 BTU/h (no PD connected)
- 253.16 BTU/h (with 65 W PD connected)
SOFTWARE FEATURES
Advanced Features Compatible With IEEE 802.3af/at Compliant PDs
- Mac Address Auto-Learning And Auto-Aging
- IEEE 802.3x Flow Control
- 802.1p/DSCP QoS
- IGMP Snooping
