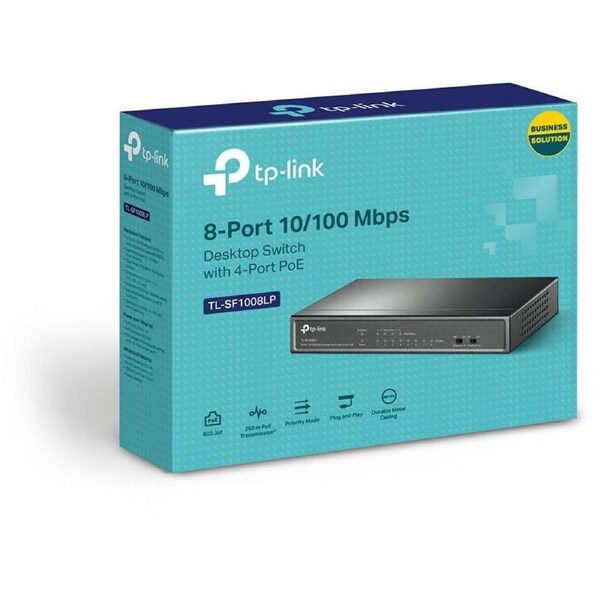

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE, Up To 41W For all PoE Ports

TP-Link TL-SF1008LP 8-Port 10/100Mbps Desktop Switch with 4-Port PoE

• 8x 10/100 Mbps RJ45 ports
• 4x PoE ports transfer data and power on individual cables
• Works with IEEE 802.3af compliant PDs
• Up to 250m data and power transmitting range under Extend Mode**
• Priority Mode ensures high priority of ports 1 - 2 to guarantee the quality of sensitive application
• Supports PoE Power up to 41 W for all PoE ports*
• Plug and play with no configuration required

HARDWARE FEATURES

Interface 8x 10/100 Mbps RJ45 Ports (Ports 1 - 4 support 802.3af PoE)

• AUTO Negotiation
• AUTO MDI/MDIX

Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)

• EIA/TIA-568 100 ohms STP (maximum 100m)
• 100BASE-TX: UTP category 5, 5e cable (maximum 100m)
• EIA/TIA-568 100 ohms STP (maximum 100m)

Fan QuantityFanless

Physical Security LockYes

External Power SupplyExternal Power Adapter (Output: 53.5 V DC / 0.81 A)

PoE Ports (RJ45) Standard: 802.3 af compliant

• PoE Ports: Ports 1 - 4
• Power Supply: 41 W

Backbound Bandwidth1.6 Gbps

Mac Address Table2K

Dimensions ( W x D x H )6.7 x 3.9 x 1.1 in (171 x 98 x 27 mm)

Max Power Consumption 2.2 W (220 V/ 50 Hz. no PD connected)

• 47.1 W (220 V/ 50 Hz. with 41 W PD connected)

Max Heat Dissipation 7.5 BTU/h(no PD connected)

• 160.61 BTU/h(with 41 W PD connected)

SOFTWARE FEATURES

Transmission MethodStore-And-Forward

Advanced Functions Compatible With IEEE 802.3af Compliant PDs

• Extend Mode Button (Ports 1 - 4)
• Priority Mode Button (Ports 1 - 2)
• Mac Address Auto-Learning and Auto-Aging
• IEEE802.3x Flow Control for Full-Duplex Mode and Backpressure for Half-Duplex Mode

OTHERS

CertificationFCC, CE, RoHS

Package Contents TL-SF1008LP

• Power Adapter
• Installation Guide

Environment Operating Temperature: 0 - 40 C (32 - 104 F)

• Storage Temperature: -40 - 70 C (-40 - 158 F)
• Operating Humidity: 10 - 90% RH non-condensing
• Storage Humidity: 5 - 90% RH non-condensing
