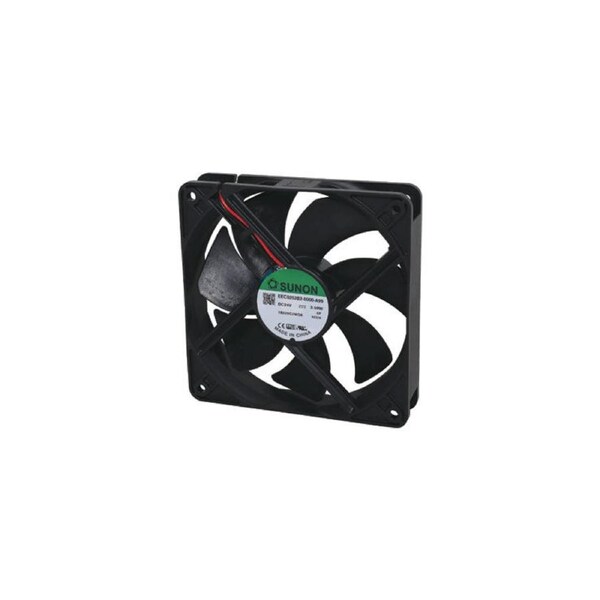

SUNON 120mm 24VDC Ball Bearing Cooling Fan EEC0252B2-000U-A99
Sunon EEC0252B2-000U-A99 24V DC 120mm Ball Bearing Cooling Fan with thermoplastic frame. Designed for long-life and minimal noise operation. Sunon® fans are manufactured to a very high standard and hold CSA and UL listings. Altronics has been a Sunon distributor for many years and have found them to be of excellent overall quality and reliability.
Note: Other models are available for your specific OEM requirements, please contact us for details.
Mechanical Characteristics
- Motor Design: 2 phases, 4 poles, brushless DC motor
- Bearing System: Precision ball bearing system
- Frame/Fan Blade Material: Thermoplastic PBT of UL 94V-0
- Rotation: Counter-clockwise (viewed from the front of the blade)
- Mounting Holes: 8 x 4.3mmØ
- Dimensions: 120 x 120 x 25mm
- Weight: 157g
Electrical Characteristics
- Rated Voltage: 24V DC
- Rated Current: 146mA
- Rated Power Consumption: 3.5W
- Operating Voltage Range: 10 ~ 27.6V DC
- Starting Voltage: 10V DC (25°C power on/off)
- Operating Temperature Range: -10°C ~ +70°C
- Storage Temperature Range: -40°C ~ +70°C
Performance Characteristics
- Rated Speed: 2700 RPM ± 10% at rated voltage
- Air Flow: 93 CFM
- Static Pressure: 0.22 Inch-H2O
- Insulation Class: UL Class 5
- Insulation Resistance: 10M? at 500V DC between internal stator and lead wire (+)
- Dielectric Strength: Applied 500V AC for one minute or 600V AC for 2 seconds between housing and lead wire (+)
- Life Expectancy: 70,000 hours at 40°C, 60% humidity, 90% CL
- Protections: Automatic Restart, Polarity Protection
*Specifications are subject to change without notice.
