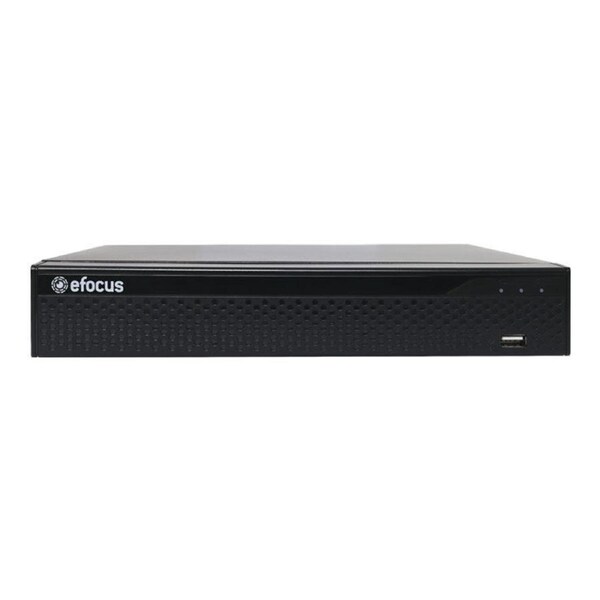

efocus S9344P 4 Channel AHD 8MP-IP-CVI-TVI Hybrid Digital Video Recorder Black

This 4 channel digital video recorder is designed to support connection analog AHD, TVI and IP cameras (PoE router may be required for IP usage). Each channel can be individually recorded in real time 25fps @ 1080p to the internal SATA hard drive (available separately). Or 15fps @ 4MP (2560x1440px) resolution. HDMI, VGA?and composite outputs are provided for connection to an external monitor. Channels may be viewed in full screen or quad modes with switching and freeze image functionality. Recording can be continuous, scheduled or triggered via motion detection or alarm input. Four alarm inputs are provided with 1 output for triggering auxiliary equipment. USB input is provided for backup and archiving. Footage can be viewed on your PC with the included software. Includes power supply. Live viewing can be done remotely over internet or on mobile devices (apps to suit iOS & Android). 1080p display resolution. Two SATA interfaces (12TB max). Hard disk sold separately. A 4K monitor is also recommended for viewing and recording resolutions 3MP to 8MP.

NOTE: UNIT IS NOT SUPPLIED WITH HARD DRIVE. ALL HARD DRIVES AVAILABLE SEPARATELY

• Support AHD/CVI/TVI/IP/Analog Camera Input
• Up to HD 5MP and IP 8MP Resolution Recording
• Support HD Output, VGA and CVBS Video Output
• Support Max. 4CH HD or 16CH IP Camera Input
• Support 1 SATA up to 6TB Capacity

NOTE:
Installations of CCTV systems can vary greatly in configuration and technical complexity. We recommend that unless you have skills in computer networking that you engage a CCTV installer or professional to set up your installation. The process can involve opening router ports, setting up IP routes etc which can be daunting for a beginner. Every installation is different, as a result, it can be difficult to diagnose set up issues over the phone or via email.

System

• Main Processor: MC6650
• Operating System: Embedded LINUX

Video

• Input: Default - 4 x (AHD/TVI/CVI: 8MP; TVI/AHD: 5MP; AHD/TVI/CVI: 4MP; AHD/TVI/CVI: 1080P/720P; Analog: 960H) + 4 x network (Max 8MP) Analog+Network: 2 x Analog, 7 x network (Max 8MP)
• Network - 16 x network (Max 8MP) (Total incoming bandwidth ?80M)
• Input: 4 channel BNC
• Signal Type: Analog/AHD/CVI/TVI 2.0/TVI 3.0/Network
• Output: 1x HDMI, 1x VGA, 1x CVBS

Audio

• Input: 4 Channel RCA, support AOC
• Output: 1 Channel RCA

Alarm

• Sensor Input: 4
• Output: 1
• Motion Detection: 8 Channel (max 16 channel in pure network mode)
• Trigger Events: Recording, email, screen tips, buzzer, push notifications (motion detection)
• Email Alarm: Send image to the designated email

AI Function

• Face Comparison: Yes

PTZ

• Interface: RS485
• Protocol: Pelco-D, Pelco-P
• Baud Rate: 110~921600
• Address: 0~255

Display

• VGA: Resolution - 1920x1080P, 1280x1024, 1280x720, 1024x768
• HD Output: Resolution - 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
• Display Split: 1/4/8/9/16
• Privacy Masking: 3 rectangular zones (each camera)
• OSD: Camera Title, Time, Video Loss, Alarm, Motion Detection, Recording

Recording

• Video Compression: H.265/H.265+/H.264/H.264+
• Audio Compression: G.771u/G.771a
• Resolution: 8MP(3840×2160), 5MP(2560×1952), 4MP(2560×1440), 3MP(2048×1536), 1080P(1920×1080), 720P(1280×720), 960H(P:960×576/N:960×480)
• Video Quality: Lowest/Low/Ordinary/Good/Better/Best
• Record Rate:
• Analog - PAL: 8MP(3840x2160 4 x 8fps), 5MP(2560×1952 4 x 12fps), 4MP(2560×1440 4 x 15fps), 3MP(2048×1536 4 x 18fps), 1080P(1920x1080 4 x 25fps), 720P(1280×720 4 x 25fps), 960H(960×576 4 x 25fps)
• Pure IP (H.265) - PAL :8MP@9x25fps, 5MP@12x25fps,4MP@16x25fps, 3MP@16x25fps, 1080P@16x25fps, 960P@16x25fps, 720P@16x25fps, D1@16x25fps
• Record Mode: Manual/Timer/Motion Detection/Alarm/Intelligent

Playback and Backup

• Decode Capability: 4 x 1080P@30fps
• Sync Playback: Pure Analog - 4CH 8M@8fps, 4CH 5M@12fps,4CH 4M@15fps, 4CH 3M@18fps, 4CH 1080p@30fps, 1CH 4K@30fps
• Mix Mode - 2CH 8M@8fps, 2CH 5M@12fps,2CH 4M@15fps, 2CH 3M@18fps, 2CH 1080p@30fps, 1CH 4K@30fps,2CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Pure IPC - 1CH 4K@30fps, 1CH 5M@30fps, 2CH 4M@30fps,2CH 3M@30fps, 4CH 1080P@30fps, 4CH 960P@30fps, 4CH 720P@30fps
• Remote Playback: 4 Channel / 1 Channel
• Search Mode: ALL, Channel, Manual, Time, Date, Motion Detection, Alarm, Tag
• Playback Functions: Play, Pause, Stop, Fast Play, Slow Play, Rewind, Single Frame Forward, Single Frame Backward, Digital Zoom, Full Screen
• Smart Phone Playback: 4 Channel
• Backup Mode: USB Device (with format FAT 32)/Network/FTP

Network

• Interface: 1RJ45 10M/100M Adaptive Ethernet Interface
• Network Functions: TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTP, RTSP, RTCP
• DDNS: Dyndns, changeip, no-ip, Oray, A-PRESS, MYQSEE, SKDDNS, SMART-EYES, ZEBEYE, HDPROVN, DYNAMIC_PLANET, EASY_PLANET
• Web Browser: Edge, IE8-11, Google Chrome, Firefox, Safari
• CMS Software: Support Windows 7/Windows 8/Windows 10
• Extra Stream: CIF/D1 (1-30fps)
• Smart Phone: iPhone, iPad, Android, Android Pad

Hard Disk

• Interface Type: 1 SATA Interface
• Capacity: 1 SATA Hard Disk (2.5""/3.5"" SATA, up to 8TB)

General

• UTC Control: Yes
• USB Interface: 2 USB 2.0 Interfaces
• Power Consumption: 12V DC/2A ?10W (without hard disk)
• Working Environment: -10°C ~ +55°C / 10~90%
• Language: Simplified Chinese, Traditional Chinese, English, Polish, Czech, Russian, Thai, Hebrew, Arabic, Bulgarian, Japanese, German, French, Portuguese, Turkic, Spanish, Italian, Hungarian, Romanian, Korean, Dutch, Greek, Vietnamese
• Weight: 2kg (without hard disk)
• Dimensions: 260 x 215 x 43 mm

  *Specifications are subject to change without notice.
