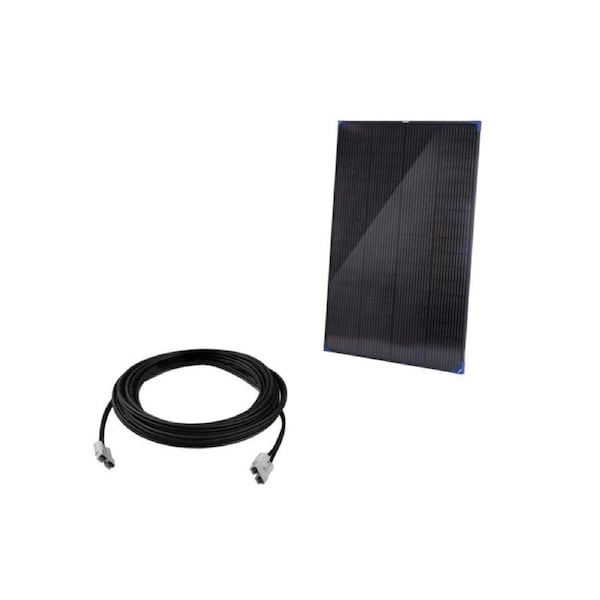

Kings 200W Fixed Solar Panel + 12m Extension Lead
Kings 200W Fixed Solar Panel | Up to 16.67A of charge at 12V | Grade A cells | Tempered glass
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
Warranty 2 Years
SKU AKSR-FX200W_02
12M SOLAR EXTENSION LEAD
The 12m Solar Extension Lead is the perfect partner for your portable solar blankets and panels. The 12-metre length and Kings quick-connect plugs make it easy to make the most of your solar - allowing you to camp in the cool shade and still set up your solar in full sun.
Specifically designed for DC solar systems, Kings Solar Leads are H1Z2Z2-K rated, meaning they're up to standard internally with quality tinned copper strands, and externally with two layers of tough Cross Linked PolyEthylene (XLPE) halogen-free insulation. Each wire is individually insulated with 0.8mm of XLPE, plus there's an extra 0.9mm thick XLPE protective sheath that covers both cables.
Length 12m
Conductor Material Twin Core Multi-Strand Copper (84x0.3)
Conductor Cross Sectional Area (each wire) 6mm2
Insulation Material 0.8mm Halogen-Free XLPO
Outer Sheath material 0.9mm Halogen-Free XLPO
External Dimensions 13.5mm x 5mm
Recommended Maximum Current 20A
Operating Temperature Range -40°C~+90°
Plug Type Kings Quick Connect Plugs (Anderson Compatible)
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage DC 1500V
