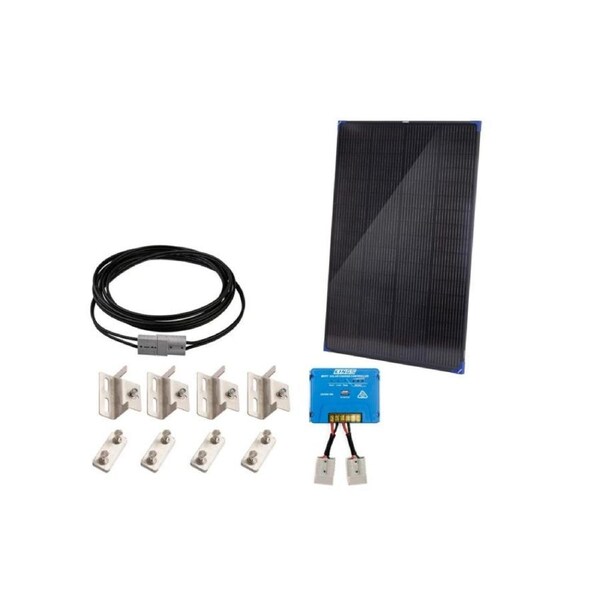

Kings 200W Fixed Solar Panel + 6m Extension Lead + Solar Panel Mounting Brackets + MPPT Solar Regulator
Kings 200W Fixed Solar Panel | Up to 16.67A of charge at 12V | Grade A cells
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
MPPT REGULATOR
• Up to 20Amps multi-stage Charging Capacity for Up To 300W of Solar
• Regulator Type: Maximum Power Point Tracking
• Dimensions: 131×99.5×29.5(mm)
• Regulator current rating: 20A charge / discharge
• Regulator Voltage: Suitable for 12V or 24V systems
• Maximum Regulator Voltage input: 50V
• No-load current (standby current): <10mA
• Safety: Overload & short circuit protection ≥1.5x rated current
• USB output: 5V 1A
6M SOLAR EXTENSION LEAD
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
SOLAR PANEL MOUNTING BRACKETS
• Material: Folded Stainless Steel
• Mounting Hardware: Stainless Steel
• Weight : 800gm
