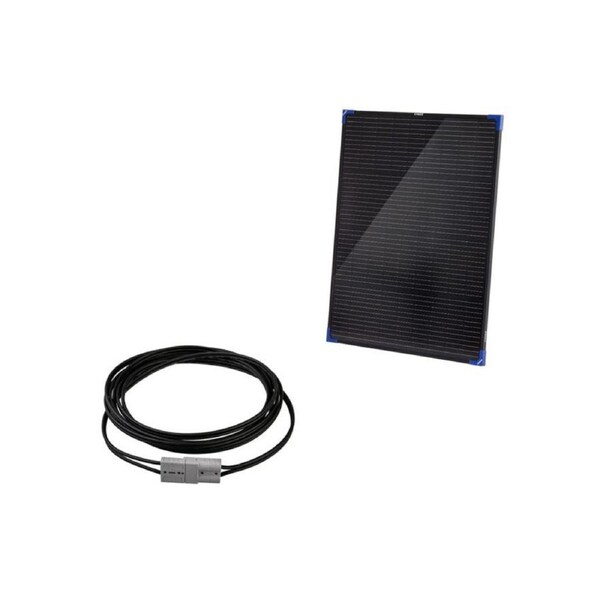

Kings 100W Fixed Solar Panel + 6m Extension Lead
KINGS 100W FIXED SOLAR PANEL | UP TO 8.33A OF CHARGE AT 12V | GRADE A CELLS | TEMPERED GLASS
Output 105W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 23.07V
ISC (Short Circuit Current) 5.61A
VMP (Maximum Power Voltage) 19.90V
IMP (Maximum Power Current) 5.30A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 68.3 x 2 cm
Weight 6.6kg
Warranty 2 Years
SKU AKSR-FX100W_02
ADVENTURE KINGS 6M SOLAR EXTENSION LEAD
2.5MM2 HIGH QUALITY COPPER | HEAVY DUTY
The 6 metre length and simple quick-connect plugs make it easy to make the most of your solar - allowing you to camp in the cool shade and still set up your solar in full sun.
Specifically designed for portable solar the 2.5mm2 copper cables minimise voltage drop. Of course each wire is individually insulated, plus there's an extra 1mm thick PVC protective sheath that covers both cables. The sheath is heat and water resistant and offers extra abrasion resistance too - perfect for your next trip away or your next DIY project!
Length 6m
Conductor Material Multi-Strand Copper 51x0.25
Conductor Cross Sectional Area (each wire) 2.5mm2
Insulation Material 0.8mm PVC
Outer Sheath material 1mm PVC
Outer Diameter 9.3mm
Recommended Maximum Current 20A
Operating Temperature Range -5°C~+70°
Plug Type Anderson-style Quick Connect
Plug Rating 50A
Plug Material UL94-V0 Flame Resistant Thermoplastic
Connector Material Copper
Maximum Rated Voltage 300V
