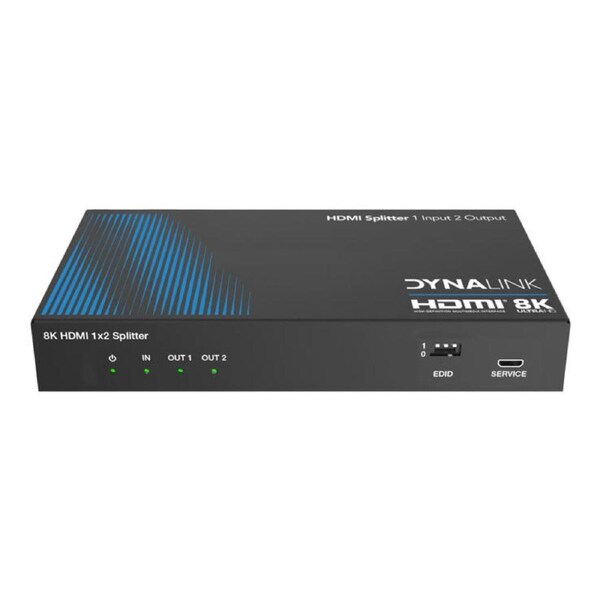

Dynalink A3106 8K HDMI 2 Way Splitter 40Gbps Video Bandwidth 145W × 68D × 17H
This splitter can distribute one HDMI source signal to any two display devices. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conferencing, multi-media teaching and other occassions requiring for multi screen display.
- HDMI 2.1 and HDCP 2.3 compliant
- 40Gbps video bandwidth
- Supports video resolution up to 8K@60Hz 4:2:0 10bit, 8K@30Hz 4:4:4
- 10bit, 4K@120Hz 4:4:4 10bit
- VRR, FVA, ALLM supported
- Supports HDR, HDR10, HDR10+, Dolby Vision, HLG pass through
- Supports HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
- Built-in Equalizer, Retiming and Driver
- Advanced EDID management
- Support audio de-embedding function (output through the optical and analog port)
- Compact design for easy and flexible installation for two HDMI outputs
- HDMI daisy chain several splitters - up to 4 levels.
Technical
- HDMI Compliance: HDMI 2.1
- HDCP Compliance: HDCP 2.3
- Video Bandwidth: 40Gbps
- Video Resolution: Up to 8K@60Hz 4:4:4 8/10/12bit, 8K@60Hz 4:2:0 12-bit, 8K@30Hz 4:4:4 10-bit, 4K@120Hz 4:4:4 10-bit
- Audio Formats: HDMI input/output: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD Audio de-embedding output: Optical: LPCM 2/5.1 CH, Dolby Digital 2/5.1 CH, DTS 2/5.1 CH, Analog: PCM 2.0
- Colour Depth: 8-bit,10-bit,12-bit
- Colour Space: RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0
- ESD Protection: Human body model ±8kV (Air-gap discharge) & ±4kV (Contact discharge)
Connection
- Input Ports: 1 x HDMI IN Type A (19-pin female)
Output Ports:
- 2 x HDMI OUT (Type A, 19-pin female)
- 1 x OPTICAL (S/PDIF)
- 1 x L/R (3.5mm Stereo Mini-jack)
- Control: 1 x SERVICE (Micro USB, Update port)
Mechanical
- Housing: Metal Enclosure
- Silkscreen Colour: Black
- Dimensions (mm): 145W × 68D × 17H
- Weight: 258g
- Power Supply: 5V 2A DC
- Power Consumption: 4.15W (Max)
- Operation Temperature: -0°C to 40°C
- Storage Temperature: -20°C ~ 60°C
- Relative Humidity: 20~90% RH (non-condensing)
*Specifications are subject to change without notice.
Box Contents
- 1 x 8K HDMI 1x2 Splitter
- 1 x 5V/2A Power Supply
- 1 x User Manual
