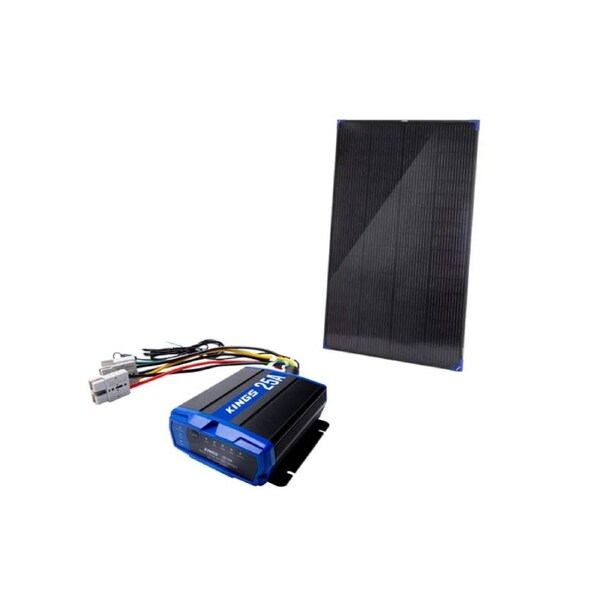

200W Fixed Solar Panel - Up to 16.67A at 12V - Grade A cells+ 25A DC-DC Charger
• The Adventure Kings 200W fixed solar panel is great for permanent mounting, on the roof of your 4WDs, utes, vans, camper trailers, caravans and even boats! 3.2mm thickened tempered glass with a reinforced custom aluminum frame. This ensures durability when fixed mounted on a vehicle. The slimline custom extruded frame not only reduces wind resistance to boost fuel efficiency but also lowers the overall height of your vehicle so you can fit into those tight spaces.
KINGS 200W FIXED SOLAR PANEL | UP TO 16.67A OF CHARGE AT 12V | GRADE A CELLS | TEMPERED GLASS
Output 200W
Power Tolerance +/- 5%
VOC (Open Circuit Voltage) 21.85V
ISC (Short Circuit Current) 11.25A
VMP (Maximum Power Voltage) 18.83V
IMP (Maximum Power Current) 10.65A
ISC Temperature Coefficient 0.05%/°C
VOC Temperature Coefficient -0.39%/°C
Pmax Temperature Coefficient -0.44%/°C
Standard Test Condition 1000W/m2, 25ºC, AM1.5
Connection Kings Quick Connect (Anderson Style) Plug
Dimensions 87.5 x 127.8 x 2cm
Weight 11.6 kg
KINGS 25A DCDC CHARGER
Max. Continuous Charging Current 25A
Max. Output Power 300W
Max. Input Current 27A
Vehicle Input Working Voltage Range (12V) 13.1 - 12.8V
Vehicle Input Working Voltage Range (24V) 26.2 - 25.6V
Min. Input start-up Voltage - Vehicle 10V to recognise battery (12V to start charging)
Solar Input Range 10 - 32V
Vehicle Input Working Voltage Range (Ign wire NOT fitted) 12.8 - 16V
Min. Input start-up Voltage - Vehicle (Ign Wire NOT fitted) 13.8V
Min. Aux Battery Voltage (Lithium) 0V (Wake Function)
Min. Aux Battery Voltage (Lead Acid) 4V
Idle Current Draw 15mA
Operating Temperature -20°C to 80°C (with automatic 5-stage current derating)
Dimensions (LxWxH) 151mm x 121mm x 44mm
Weight ~1kg
Temperature Compensation Yes ±18mV/°C
Temperature Sensor(s) Yes, internal + external with M8 ring terminal for accurate battery temperature
Housing Powder coated aluminium
LED Indicator lights Yes - for connection, charging status and errors
Battery Chemistry Selection Yes - Lithium (LiFePO4), AGM, wet lead acid, gel, calcium
Fuses required Yes - not supplied (50A Suggested)
IP Rating IP66
Built-in Protections - Over Voltage, Reverse Polarity, Over-Temperature Protection
